HomeProductsSensors, TransducersOptical Sensors - PhototransistorsTEST2600

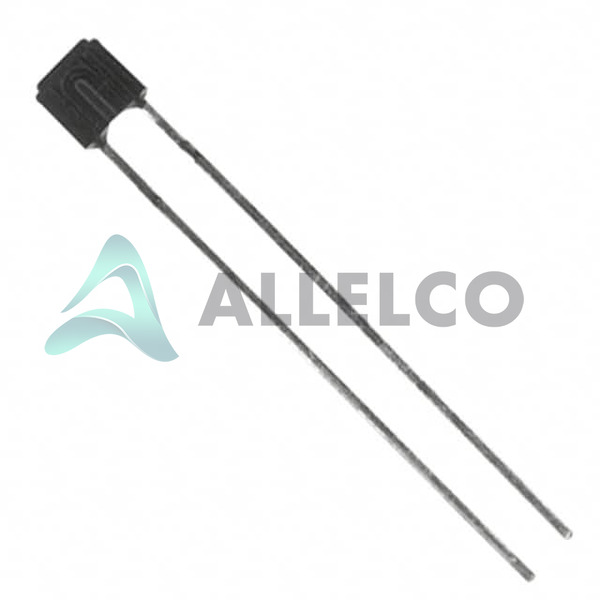

TEST2600 Image
TEST2600 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TEST2600 - Vishay Semiconductor Opto Division

Manufacturer Part Number
TEST2600
Manufacturer
Vishay Semiconductor - Opto Division
Allelco Part Number
32D-TEST2600
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
138,680 pcs available, New & Original
Parts Description
PHOTOTRANSISTOR 850 TO 980 NM
Package
Radial, Side View
Data sheet
TEST2600.pdf

Datasheets

TEST2600.pdf

HTML Datasheet

TEST2600.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 138680
  • Unit Price: $0.566
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.566 $0.57
10+ $0.554 $5.54
30+ $0.547 $16.41
100+ $0.54 $54.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

TEST2600 Tech Specifications
Vishay Semiconductor Opto Division - TEST2600 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Opto Division - TEST2600

Product Attribute Attribute Value
Manufacturer Vishay Semiconductor - Opto Division
Wavelength 950nm
Voltage - Collector Emitter Breakdown (Max) 70 V
Viewing Angle 60°
Series -
Power - Max 100 mW
Package / Case Radial, Side View
Product Attribute Attribute Value
Package Bulk
Orientation Universal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Through Hole
Current - Dark (Id) (Max) 100 nA
Current - Collector (Ic) (Max) 50 mA
Base Product Number TEST2600

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080

Parts Introduction

TEST2600 Image
TEST2600 (1)

Manufacturer Part Number

TEST2600

Manufacturer

Vishay Semiconductor - Opto Division

Introduction

The TEST2600 is a high-performance phototransistor sensor designed for a wide range of applications.

Product Features and Performance

Wide operating temperature range of -40°C to 85°C

High collector current of up to 50 mA

Collector-emitter breakdown voltage of up to 70 V

Sensitive to 950nm wavelength light

Wide viewing angle of 60°

Maximum power dissipation of 100 mW

Product Advantages

Robust and reliable construction for industrial and commercial use

Excellent sensitivity and responsiveness to infrared light

Versatile mounting options with through-hole design

Compliant with RoHS3 environmental regulations

Key Technical Parameters

Collector current (max): 50 mA

Collector-emitter breakdown voltage (max): 70 V

Wavelength: 950 nm

Viewing angle: 60°

Power dissipation (max): 100 mW

Dark current (max): 100 nA

Quality and Safety Features

RoHS3 compliant for environmental responsibility

Rigorous testing and quality control measures

Compatibility

Universal orientation for easy installation

Suitable for a wide range of sensor and control applications

Application Areas

Industrial automation and control systems

Security and surveillance systems

Robotics and motion detection

Optical communication and data transmission

Product Lifecycle

Current production model with no immediate plans for discontinuation

Replacement or upgrade options may be available in the future

Key Reasons to Choose This Product

Exceptional performance and sensitivity in a compact, through-hole package

Wide operating temperature range for versatile deployment

Robust construction and RoHS3 compliance for reliability and environmental responsibility

Versatile compatibility and application potential in various industries

Frequently Asked Questions(FAQ)

What are the key performance trade-offs when selecting the TEST2600 phototransistor for high-speed optical detection applications?
The TEST2600 offers a peak sensitivity at 950nm with a 60° viewing angle, which is advantageous for directional light sensing in radial configurations. However, its dark current of up to 100 nA and collector current limit of 50 mA impose constraints on signal-to-noise ratio and maximum output drive capability. Designers must balance these parameters against application-specific speed requirements, as higher gain may reduce bandwidth, potentially limiting use in fast-switching or high-frequency modulation scenarios unless external amplification is implemented.
How does the TEST2600 compare to standard photodiodes in terms of responsivity and noise characteristics for low-light infrared applications?
Compared to typical photodiodes, the TEST2600 provides higher responsivity due to internal current gain from its phototransistor structure, making it more sensitive in low-light conditions around 950nm. However, this comes at the cost of increased dark current (up to 100 nA) and slower response time. For applications requiring minimal noise and high linearity, such as precision analog detection, a photodiode paired with an op-amp might be preferable, whereas the TEST2600 suits digital or switching applications where moderate speed and higher sensitivity are prioritized.
Can the TEST2600 be reliably used in ambient light environments near 950nm without significant interference?
Yes, the TEST2600’s spectral response peaks sharply around 950nm, which helps reject broader ambient light spectra. However, strong nearby IR sources—such as sunlight filtered through bandpass optics or other LED emitters operating near 950nm—can still saturate or overwhelm the sensor. Implementing narrow-band optical filters centered at 950nm is recommended to minimize false triggering and improve signal integrity in outdoor or brightly lit indoor settings.
What layout considerations are critical when mounting the TEST2600 in a through-hole PCB design?
Given its radial, side-view package and universal orientation, the TEST2600 allows flexible alignment with light incidence. However, mechanical stress on the leads during soldering can affect performance, so hand-soldering should be minimized. A low-temperature solder profile and controlled reflow are advised to avoid thermal damage. Additionally, the 60° viewing angle implies that precise positioning relative to the light source path is essential to maintain consistent detection across varying assembly tolerances.
Is the TEST2600 suitable for use in battery-powered devices where power consumption is a concern?
While the TEST2600 itself consumes no static power when inactive, its collector-emitter breakdown voltage is rated at 70 V, and it can draw up to 50 mA during conduction. In low-power designs, driving this device continuously at full capacity would drain batteries quickly. Therefore, it should be operated in pulsed or interrupt-driven modes with appropriate series resistors to limit average current, ensuring compatibility with energy-constrained systems.
How does temperature variation between -40°C and 85°C affect the dark current and gain of the TEST2600?
Dark current typically increases exponentially with temperature; at elevated temperatures near 85°C, the upper limit of 100 nA could rise significantly due to intrinsic carrier generation. This may degrade signal-to-noise ratio in low-level detection tasks. Similarly, transistor gain can vary with temperature, affecting output swing and threshold behavior. Designers should derate the circuit to account for worst-case thermal conditions, possibly incorporating feedback mechanisms or calibration routines if stable performance across the full operating range is required.
What is the impact of using the TEST2600 without proper shielding in industrial environments with EMI/RFI noise?
Although the TEST2600 is not inherently immune to electromagnetic interference, its primary susceptibility stems from the semiconductor junction rather than conducted noise. However, long lead lengths or unshielded traces can act as antennas, coupling RF into the base circuit and causing spurious outputs. Proper grounding, short lead routing, and inclusion of bypass capacitors near the collector supply help mitigate such effects, especially in electrically noisy environments like motor drives or switch-mode power supplies.
Can multiple TEST2600 units be paralleled to increase photocurrent output?
Paralleling TEST2600 phototransistors is generally not recommended without careful matching of individual sensitivities and gains, as slight manufacturing variations can cause uneven current distribution. Even small mismatches may lead to one device dominating while others remain underutilized. Instead, consider using a single unit with an external emitter-follower buffer or optocoupler driver to amplify output without relying on parallel operation.
Does the RoHS3 compliance of the TEST2600 introduce any limitations in hazardous material handling during manufacturing?
No. RoHS3 compliance means the TEST2600 contains no restricted substances above regulatory thresholds, simplifying compliance documentation and reducing risk during assembly. There are no special handling procedures beyond standard ESD precautions. The component is REACH unaffected and classified under ECCN EAR99, indicating unrestricted export potential and straightforward supply chain management.
How does the MSL rating of 1 influence storage and shelf life expectations for bulk-packaged TEST2600 components?
With an Moisture Sensitivity Level of 1, the TEST2600 has unlimited shelf life under normal dry storage conditions and requires no baking before soldering. This simplifies inventory management and reduces processing steps in high-volume production, making it ideal for just-in-time manufacturing strategies without added reliability concerns related to moisture absorption.

Parts with Similar Specifications

The three parts on the right have similar specifications to Vishay Semiconductor Opto Division TEST2600

Product Attribute TEST2600 TEST-C TEST-D TESVA1C106M
Part Number TEST2600 TEST-C TEST-D TESVA1C106M
Manufacturer Vishay Semiconductor Opto Division OptiFuse OptiFuse NEC
Current - Dark (Id) (Max) 100 nA - - -
Wavelength 950nm - - -
Operating Temperature -40°C ~ 85°C (TA) - - -
Power - Max 100 mW - - -
Orientation Universal - - -
Base Product Number TEST2600 - - -
Mounting Type Through Hole - - -
Current - Collector (Ic) (Max) 50 mA - - -
Package Bulk - - -
Package / Case Radial, Side View - - -
Series - - - -
Viewing Angle 60° - - -
Voltage - Collector Emitter Breakdown (Max) 70 V - - -
