Specifications

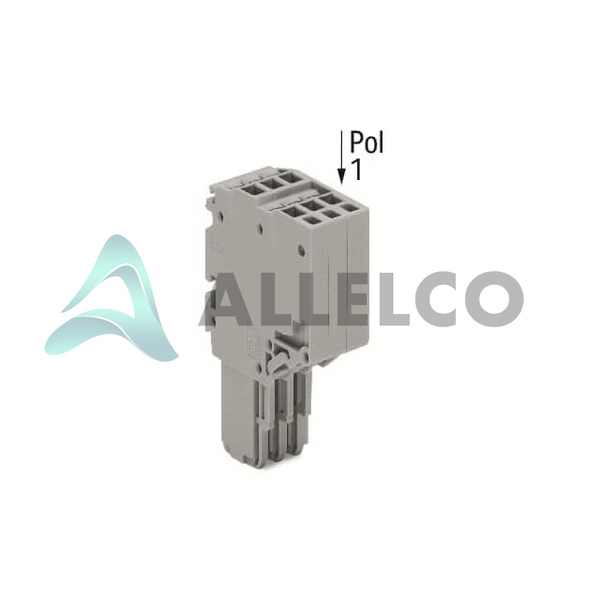

2020-215 Tech Specifications
WAGO Corporation - 2020-215 technical specifications, attributes, parameters and parts with similar specifications to WAGO Corporation - 2020-215
| Product Attribute |
Attribute Value
| |
| Manufacturer |
WAGO |
|
| Wire Strip Length |
9-11mm |
|
| Wire Gauge or Range - mm² |
0.14-1.5mm² |
|
| Wire Gauge or Range - AWG |
16-24 AWG |
|
| Voltage - UL |
300 V |
|
| Voltage - IEC |
500 V |
|
| Type |
Plug, Female Sockets |
|
| Torque - Screw |
- |
|
| Termination Style |
Screwless - Push-In Spring |
|
| Series |
X-COM® S-Mini |
|
| Screw Size |
- |
|
| Positions Per Level |
15 (Mate), 30 (Input) |
|
| Plug Wire Entry |
180° |
|
| Pitch |
0.138" (3.50mm) |
|
| Package |
Box |
|
| Operating Temperature |
- |
|
| Product Attribute |
Attribute Value
| |
| Number of Positions |
15 (Mate), 30 (Input) |
|
| Number of Levels |
1 (Mate), 2 (Input) |
|
| Mounting Type |
Free Hanging (In-Line) |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Insulation Height |
0.882" (22.40mm) |
|
| Ingress Protection |
- |
|
| Housing Material |
Polyamide (PA66), Nylon 6/6 |
|
| Header Orientation |
- |
|
| Features |
- |
|
| Current - UL |
15 A |
|
| Current - IEC |
13.5A |
|
| Contact Tail Length |
- |
|
| Contact Mating Finish |
- |
|
| Contact Material |
Copper |
|
| Color |
Gray |
|
