ADAU1701 Audio Processor: Pinout, Specifications, and Datasheet

The ADAU1701 is a technologically advanced sigmaDSP audio processor designed to elevate audio quality. It seamlessly amalgamates a variety of functionalities within one chip. In this article, we will explore the detailed pin configuration, practical insights, and strategic applications that outline how the ADAU1701 can be seamlessly integrated into multiple audio settings, from home theaters to automotive systems, thereby optimizing functionality and improving sound quality.

Catalog

What is the ADAU1701?

The ADAU1701 delivers robust audio processing, enhancing sound quality through dynamic range management. It skillfully regulates volume and curtails distortion, which is use for pristine audio delivery in diverse environments, from lively public places to cozy home setups. This not only amplifies audio clarity but also shields speaker systems from damage due to overpowering sound waves. Beyond dynamic range management, the ADAU1701 excels in stereo imaging, crafting a richer audio. By skillfully adjusting the spatial sound distribution, it instills a sense of depth and broadness, enriching the enjoyment of music and soundtracks. This quality shines in home theaters and premium audio systems. Integration of the ADAU1701 in various audio systems showcases its adaptability and effectiveness. It blends smoothly into current frameworks, often requiring minimal modifications to harness its benefits. Examining systems like the ADAU1701 highlights the importance of flexible audio processing in contemporary electronics. As the thirst for superior audio intensifies, such advanced processors play a role in maintaining sound reproduction that aligns with the evolving expectations of audiences.

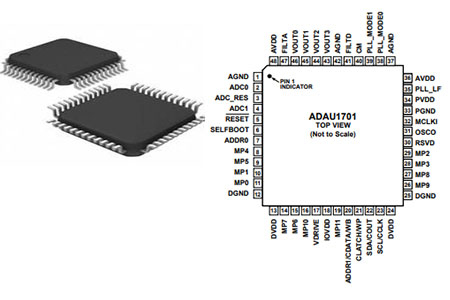

ADAU1701 Pin Configuration

ADAU1701 Symbol and Footprint

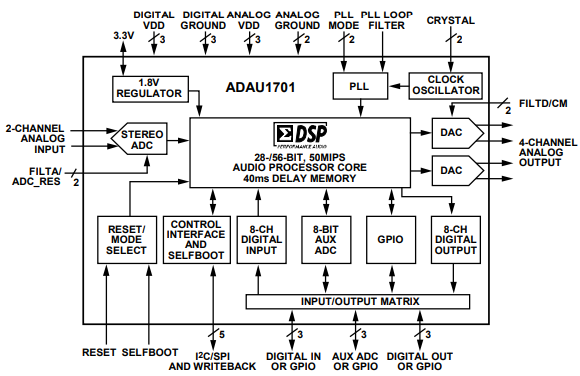

Functional Block Diagram of ADAU1701

ADAU1701JSTZ Specifications

Technical specifications, characteristics, and parameters of Analog Devices Inc.'s ADAU1701, including components with specifications similar to ADAU1701JSTZ.

Type	Parameter
Lifecycle Status	PRODUCTION (Last Updated: 1 month ago)
Contact Plating	Tin
Mounting Type	Surface Mount
Number of Pins	48
Operating Temperature	0°C–70°C TA
Series	SigmaDSP®
Pbfree Code	no
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Termination	SMD/SMT
Type	Sigma
Max Power Dissipation	286.5mW
Terminal Form	GULL WING
Number of Functions	1
Frequency	50MHz
Factory Lead Time	16 Weeks
Mount	Surface Mount
Package / Case	48-LQFP
Weight	181.692094mg
Packaging	Tray
JESD-609 Code	e3
Part Status	Active
Number of Terminations	48
ECCN Code	EAR99
HTS Code	8542.31.00.01
Terminal Position	QUAD
Peak Reflow Temperature (Celsius)	260
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
Pin Count	48
Base Part Number	ADAU1701
Max Supply Voltage	1.84V
Operating Supply Current	40mA
Number of Converters	6
Voltage - I/O	3.30V
Voltage - Core	1.80V
Height	1.4mm
Width	7mm
Radiation Hardening	No
Lead Free	Contains Lead
Power Supplies	1.83V
Interface	I2C, SPI
Min Supply Voltage	1.7V
Resolution	3 B
Signal to Noise Ratio (SNR)	100 dB
Number of GPIO	12
On Chip Data RAM	12kB
Length	7mm
REACH SVHC	No SVHC
RoHS Status	RoHS3 Compliant

Features of ADAU1701

High-Performance DSP Processing

The ADAU1701 is a versatile audio DSP processor, excelling in audio frequencies up to 50 MHz. This capability ensures you can explore intricate audio applications. With its 28-/56-bit processing, it allows precise manipulation of audio signals, catering to those seeking high-quality sound in various settings.

Superior Audio Conversion

Equipped with ADCs boasting a Signal-to-Noise Ratio (SNR) of 100 dB and DACs at 104 dB, the processor shines in clarity and noise reduction. These attributes enhance its appeal in audio scenarios, where maintaining sound fidelity is often non-negotiable. For instance, in live sound engineering, its ability to minimize noise can prove to be a subtle yet profound advantage.

Standalone Operation and Adaptability

An important aspect of the ADAU1701 is its standalone operation. This trait is advantageous for integration into systems where simplicity and reliability can enhance satisfaction. Coupled with programmable interfaces like SigmaStudio, it offers a flexible platform for customization, adapting seamlessly to varied needs. This adaptability finds it well-suited for crafting audio equipment tailored to different market demands.

Versatile Input/Output Options

With diverse input/output options, the ADAU1701 excels in adaptability across various audio systems. This variety facilitates easy integration into extensive audio setups, spanning homes to studios. The broad I/O spectrum allows to customize connectivity, accommodating specific project requirements.

Utilization of ADAU1701

Multimedia Systems

The ADAU1701 excels in multimedia systems by providing advanced audio signal processing. It skillfully manages intricate audio tasks, making it suitable for soundbars, gaming audio, and portable speakers. These systems thrive on features like noise cancellation and 3D audio enhancements. Throughout the years, many have passionately honed these technologies across various settings.

Automotive Audio Units

In automotive audio units, the ADAU1701 enriches audio clarity and dynamic soundscapes. Its robust DSP supports engine noise suppression and adaptive volume control, transforming the in-car audio journey. Others frequently integrate custom algorithms to harmonize with different vehicle acoustics, offering a personalized audio.

Home Stereos

In home stereos, the ADAU1701 delivers superior audio processing with high-fidelity sound through precise EQ settings and crossover management. It enables multi-room audio distribution, elevating entertainment systems. Iterative testing ensures compatibility with diverse music genres and personal preferences, cultivating a refined listening atmosphere.

Digital TVs

ADAU1701 enhances sound quality in digital TVs by supporting sophisticated surround sound decoding and voice enhancement features. Its compact design seamlessly integrates with slim TV profiles, aligning with modern home aesthetics. TV manufacturers often adapt these solutions to meet various broadcast standards and regional audio tastes, ensuring clarity in listening.

Audio Equipment

In audio equipment, ADAU1701 powers mixers, microphones, and live sound applications with high precision. Its low-latency processing and customizable effects chains are use in studio settings. Others depend on ADAU1701's adaptability to satisfy the rigorous demands of live performances, ensuring consistent and high-quality sound reproduction.

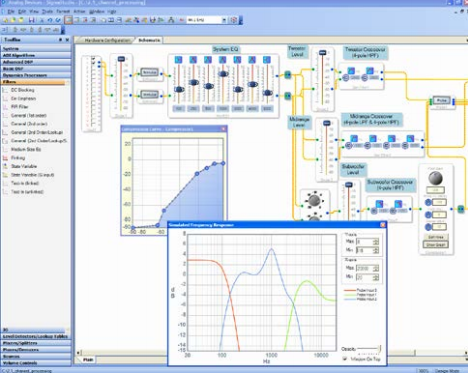

Programming Insights for ADAU1701

When powered on, the ADAU1701 can seamlessly pass input signals to outputs. Initially in a muted state, this function prepares the device for later processing. Its architecture, offering 1024 instruction cycles per sample and nearly 50 MIPS, enables a range of processing capabilities through core control registers. This versatility caters to various audio processing needs, meeting both creative aspirations and practical demands. The provision of 1024 instruction cycles per sample affords several possibilities for intricate signal processing. You can efficiently implement complex algorithms, allowing audio effects with minimal latency. Such responsiveness proves beneficial in dynamic environments like live sound reinforcement or interactive audio installations, where every detail matters.

With around 50 MIPS available, the ADAU1701 adeptly handles multi-tasking operations. Its performance supports elaborate audio processing chains, facilitating features such as dynamic range control and multi-band equalization. Core control registers provide the flexibility needed for responsive programming, enabling adaptation to specific application demands. By configuring these registers, you can fine-tune functionalities including signal routing and effect stacking. This flexibility is advantageous during iterative design processes, where swift adjustments can lead to pronounced enhancements in audio performance. With its robust design, featuring extensive instruction cycles and processing strength, the ADAU1701 serves as a potent platform for comprehensive audio signal manipulation. Thoughtful configuration and strategic resource use transform this processor into a valuable tool for crafting high-fidelity audio solutions, offering both technical depth and practical effectiveness.

ADAU1701 Package

ADAU1701 Manufacturer Information

Analog Devices thrives on developing sophisticated signal processing solutions, focusing on the ADAU1701 design and manufacturing. These innovations are instrumental in converting data into accurate electrical signals, impacting a variety of sectors and enhancing technology that touches daily life. Innovative signal processing, exemplified by the ADAU1701, plays a role in pioneering future technologies. By delving into current capabilities and uses, innovators can predict advancements in machine learning and AI-driven analytics, which depend on accurate data interpretation. This understanding is integral to anticipating upcoming trends and maintaining leadership in tech evolution. The ADAU1701 reflects Analog Devices' dedication to cutting-edge technology, transforming data into electrical signals and driving progress across various sectors by boosting performance and functionality.

Datasheet PDF

ADAU1701JSTZ Datasheets:

Cylindrical Battery Holders.pdf

2.73KHz.pdf

2.73KHz.pdf

Frequently Asked Questions [FAQ]

1. What is ADAU1701?

The ADAU1701 is a sophisticated single-chip audio processor with advanced Digital Signal Processing (DSP) capabilities. It offers enhanced signal handling to elevate audio quality and performance. Often integrated into sound systems, it allows for dynamic control and sound optimization.

2. What are the uses of ADAU1701?

The ADAU1701 is programmable via SigmaStudio software, facilitating custom audio signal processing. You can effortlessly alter audio paths and elevate functionalities, making it ideal for home theater systems, automotive audio systems, and professional sound equipment. Typical applications involve fine-tuning sound dynamics to match diverse environments and crafting immersive audio. Its flexibility in handling various audio settings ensures high fidelity and precision. This adaptability benefits industries where exceptional audio quality and tailored solutions provide a distinct advantage.
