Comprehensive Guide to the IRF530N MOSFET

The IRF530N, a standout among N-Channel power MOSFETs, excels in power management applications thanks to its robust design and efficient performance. Encased in a TO220AB package, this component finds extensive use in a variety of electrical and electronic systems, from motor controllers to power supplies and beyond. This article digs deep into the IRF530N's specifications, pin configuration, and practical applications, offering insights into its operational strengths and unique characteristics. With its ability to handle high currents and voltages efficiently, the IRF530N is a preferred choice for you aiming to optimize circuit performance and achieve reliable power management in modern electronics.

Catalog

IRF530N Overview

The IRF530N is an N-Channel power MOSFET, enclosed in a TO220AB leaded package, suitable for diverse applications across various sectors. Leveraging advanced silicon technology, it belongs to the IR power MOSFET series, meeting a range of requirements in areas including DC motor control, inverters, switch-mode power supplies (SMPS), lightning systems, switches, and battery-powered devices. You can choose between surface mount and through-hole configurations, unified by standardized footprints.

The IRF530N's architecture focuses on delivering efficiency and reliability, basic criteria in power electronics. Tailored for enduring performance, it assumes a substantial role in reducing power loss and managing thermal conditions. When integrating the IRF530N, practitioners, often drawing from their wealth of experience, navigate the complexities of balancing switching speed with thermal constraints to enhance performance while safeguarding system stability.

Pin Layout and Configuration

Pin No.	Description
1	Gate
2	Drain
3	Source
Tab	Drain

CAD Model

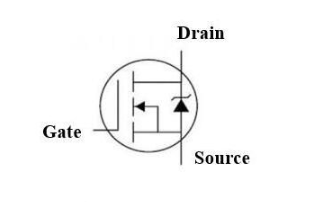

Symbol

Footprint

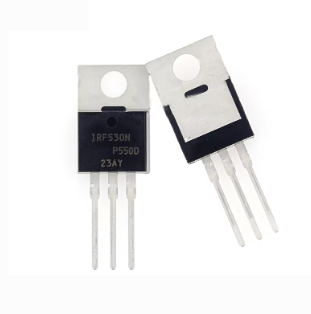

3D Model

Technical Details

Technical specifications and attributes for NXP USA Inc. IRF530N,127 MOSFET.

Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-220-3
Surface Mount	No
Transistor Element Material	Silicon
Current - Continuous Drain (Id) @ 25℃	17A Tc
Drive Voltage (Max Rds On, Min Rds On)	10V
Number of Elements	1
Power Dissipation (Max)	79W Tc
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Series	TrenchMOS™
Published	1999
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	Single
Peak Reflow Temperature (Cel)	Not Specified
Reach Compliance Code	Unknown
Time @ Peak Reflow Temperature-Max (s)	Not Specified
Pin Count	3
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Configuration	Single with Built-In Diode
Operating Mode	Enhancement Mode
Case Connection	Drain
FET Type	N-Channel
Transistor Application	Switching
Rds On (Max) @ Id, Vgs	110mΩ @ 9A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Input Capacitance (Ciss) (Max) @ Vds	633pF @ 25V
Gate Charge (Qg) (Max) @ Vgs	40nC @ 10V
Drain to Source Voltage (Vdss)	100V
Vgs (Max)	±20V
JEDEC-95 Code	TO-220AB
Drain Current-Max (Abs) (ID)	17A
Drain-Source On Resistance-Max	0.11Ω
Pulsed Drain Current-Max (IDM)	68A
DS Breakdown Voltage-Min	100V
Avalanche Energy Rating (Eas)	150mJ
RoHS Status	ROHS3 Compliant

Features

Feature	Description
Planar Cell Structure	Wide Safe Operating Area (SOA)
Broad Availability	Optimized for distribution partners
Product Qualification	Qualified according to JEDEC standard
Switching Optimization	Designed for applications switching below <100kHz
Package Type	Industry-standard through-hole power package
Current Rating	High-current rating

Advantages

Impressive Longevity and Dependability

The IRF530N MOSFET is renowned for its ability to endure challenging environments, flourishing in applications that demand reliability and extended lifespan. You can seek sustained performance and product durability and often gravitate toward this component. In various systems, these qualities aid in minimizing maintenance efforts, thus reducing disruptions in operations and fostering a more stable workflow.

Extensive Global Accessibility

A notable feature of the IRF530N is its extensive market presence, providing consistent access to this component worldwide. This accessibility facilitates its integration into multiple projects, helping to alleviate the usual delays encountered when acquiring specific electronic parts. This global reach also allows businesses to adhere closely to production timelines, enhancing project management and ensuring timely delivery.

Flexibility and Adaptability

The IRF530N's adaptability with comparable devices offers design flexibility that is useful during component substitutions or updates, reducing the impact of supply chain uncertainties. It is mostly adept at handling high-current applications, making it a valuable asset in areas like power supplies and motor control. This translates to superior electrical performance and energy management, boosting the efficiency and environmental sustainability of technical systems.

Superior Operation in Low-Frequency Contexts

The IRF530N MOSFET shines in low-frequency scenarios, proving beneficial for specialized applications where frequency precision is of lesser concern. Its use in audio amplification and power regulation systems emphasizes its importance, providing stability in low-frequency performance. You can achieve a higher caliber of output quality and consistency by integrating the IRF530N, ensuring robust satisfaction and reliability from your perspective.

Applications

The IRF530N MOSFET plays a major role in electronic circuits, especially in areas like DC-DC conversion and switched-mode power supplies. These applications emphasize its adeptness in managing high-speed switching tasks and regulating power flow.

DC-DC Conversion

DC-DC converters serve as the backbone of many electronic devices, enabling required voltage adjustments to suit various operational needs. The IRF530N excels in buck, boost, and buck-boost configurations, showcasing its adaptability. A closer examination reveals its prowess in optimizing power consumption, an active aspect of portable electronics. For example, when implemented within a voltage regulator module, the IRF530N facilitates accurate voltage control with minimal energy dissipation, thus enhancing the battery longevity of mobile devices.

Switched-Mode Power Supplies

In the world of switched-mode power supplies (SMPS), MOSFETs like the IRF530N are key for their prowess in efficiently converting power. The IRF530N, with its low on-state resistance and rapid switching abilities, minimizes heat output, optimizing efficiency for compact and heat-sensitive environments. Evidence from industrial applications indicates that in scenarios where power requirements are dynamic, the IRF530N can lower operational expenditure and bolster the reliability of power systems, ensuring consistent performance across diverse electrical loads.

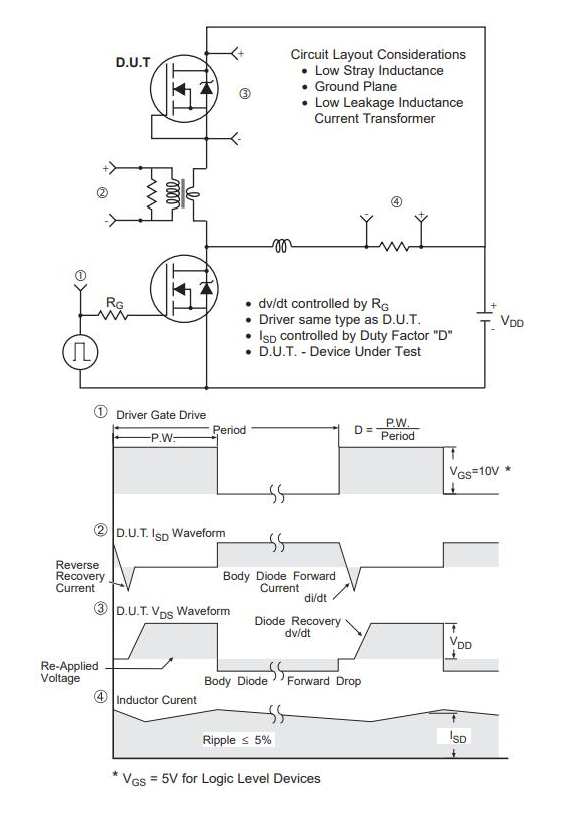

Examining Electrical Circuitry

Package Dimensions
