Motor Starting Capacitors Explained for Single-Phase Motors

You might notice that some motors start smoothly while others struggle or hum before turning, and that difference often comes down to the capacitor. A motor starting capacitor helps a single-phase AC motor begin rotating when power is applied. It works quietly in the background, storing and releasing energy at just the right moment to get the motor moving. Understanding how this component works, where it is used, and how it differs from a run capacitor helps you make sense of everyday devices like appliances, pumps, and power tools, and also helps you choose the right capacitor when replacement is needed.

Catalog

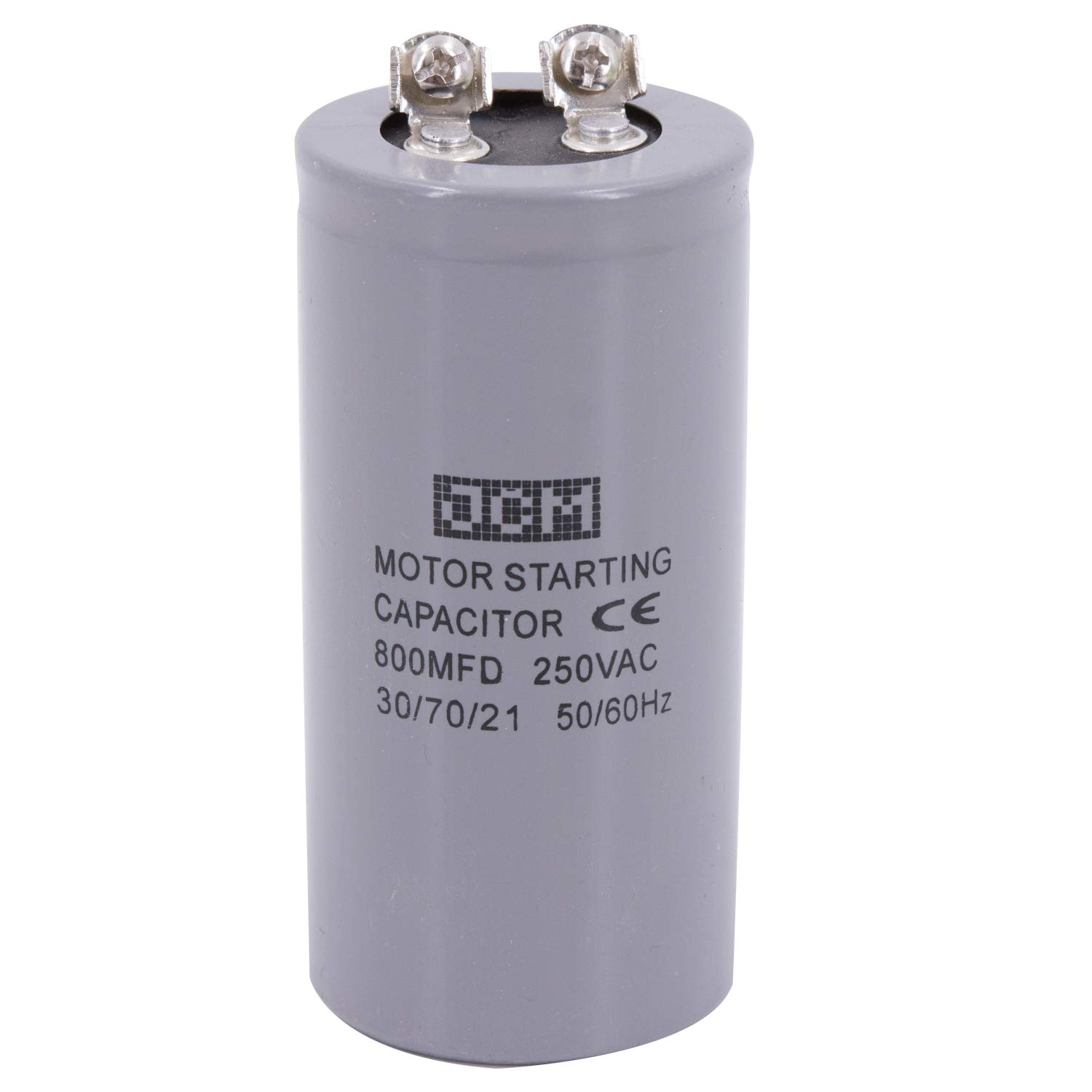

Figure 1. Motor Starting Capacitor

What Is a Motor Starting Capacitor

A motor starting capacitor is an electrical component used in single-phase AC motors to help initiate rotation at startup. In these motors, the power supply alone does not produce enough force to begin movement, which can prevent the motor from starting on its own.

The starting capacitor briefly stores electrical energy and releases it during startup, allowing the motor to develop the initial force required to begin turning. Its role is limited to this short starting period and it is not designed for continuous operation. Once the motor is running, the starting capacitor is no longer needed, as its purpose is solely to support the motor during the initial start.

Why Single-Phase Motors Need a Starting Capacitor

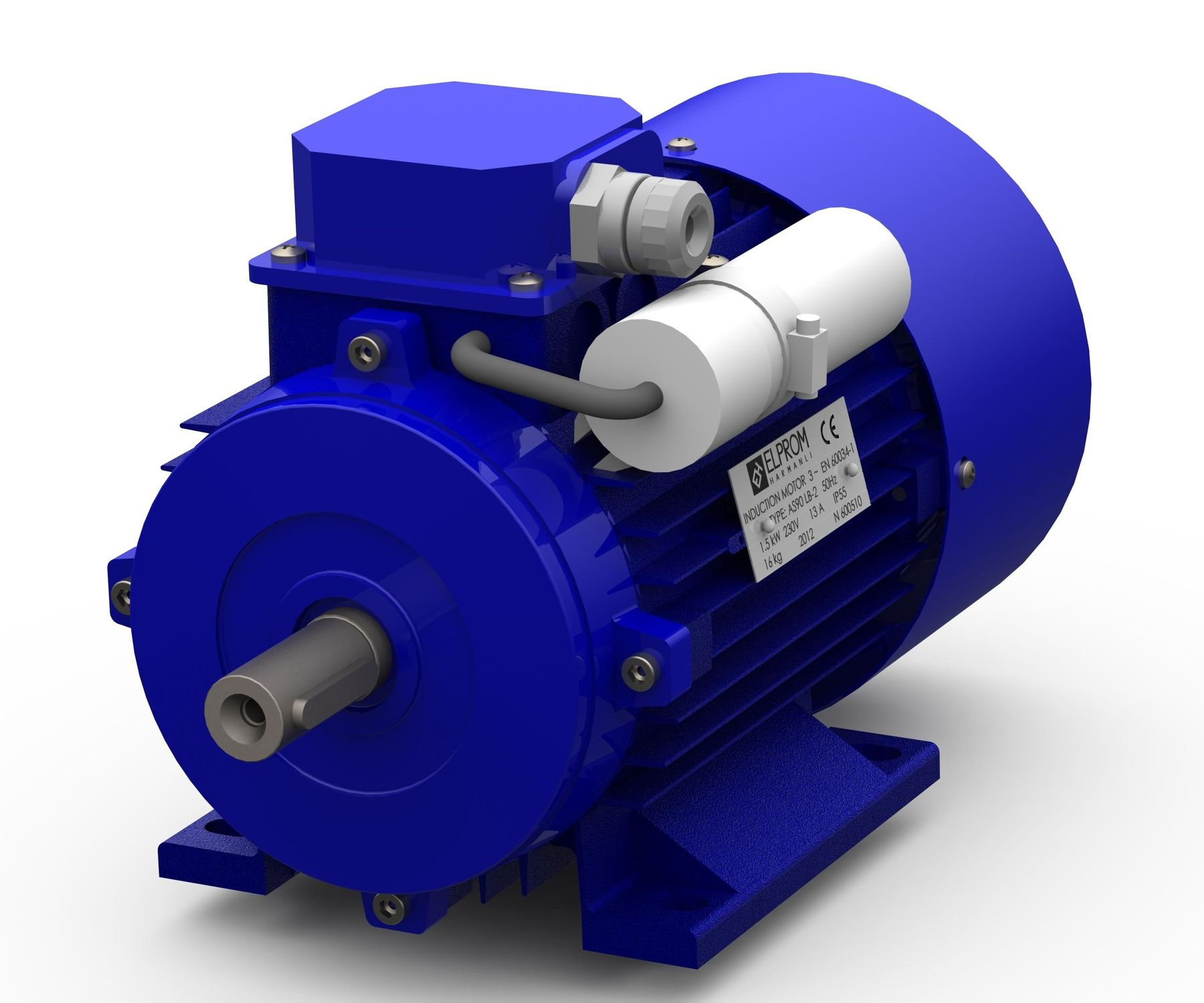

Figure 2. Single-Phase Motor with Starting Capacitor

Single-phase AC motors have a natural limitation at startup. When power is applied, the single alternating current produces a magnetic field that pulses in strength but does not rotate. This type of magnetic field is not able to create enough rotational force to start the motor from rest.

At standstill, the forces acting on the rotor are equal and opposite, so there is no preferred direction of movement. Because of this balance, the rotor may remain stationary even though the motor is energized. In practice, you might notice the motor producing a low humming sound without turning, which reflects this lack of starting torque.

To start rotation, the motor needs a way to disturb this balance. An additional phase shift introduces a difference in timing between magnetic effects inside the motor. This change allows a temporary rotating magnetic field to form, providing a clear direction of rotation and the initial force required for reliable startup.

How a Motor Starting Capacitor Works

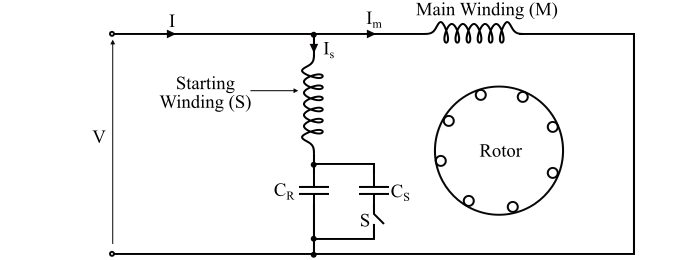

Figure 3. Motor Starting Capacitor Circuit Diagram

A motor starting capacitor works by adjusting the timing of current flow within a single-phase AC motor so rotation can begin. The circuit includes a main winding and an auxiliary winding, also called a starting winding, connected through a starting capacitor. The auxiliary winding is included only to assist during startup and does not serve a continuous operating role.

When voltage is applied, current flows through both windings. The starting capacitor delays the current in the auxiliary winding, causing it to reach its peak at a different time than the current in the main winding. This delay creates a phase difference between the two currents, which leads to a corresponding shift in the magnetic fields produced by each winding.

Because the magnetic fields are no longer synchronized, their combined effect produces a rotating magnetic field rather than a pulsating one. This rotating field applies an unbalanced force to the rotor, creating starting torque and allowing the motor to begin turning in a controlled direction. The coordinated action of the main winding, auxiliary winding, and capacitor establishes the conditions necessary for motor startup.

Start and Run Capacitors and Their Circuit Operation

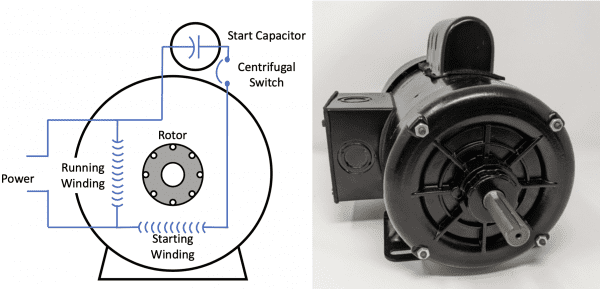

Figure 4. Start and Run Capacitor Motor Operation

Single-phase AC motors may use start capacitors, run capacitors, or a combination of both, depending on how the motor is designed to operate. Although these components appear similar, they serve different purposes and function at different stages of motor operation

Start Capacitor Operation

A start capacitor is used only during the startup phase. It is connected in series with the auxiliary winding to create a strong phase shift, which helps the motor develop enough torque to begin rotating. This capacitor is designed for short-term use and is typically removed from the circuit once the motor reaches a certain speed. The disconnection is commonly handled by a centrifugal switch or relay, which opens the start circuit automatically after startup.

Run Capacitor Operation

A run capacitor, by contrast, is designed to remain in the circuit during normal motor operation. After the start capacitor is disconnected, the run capacitor continues to work with the auxiliary winding to maintain smoother and more stable rotation. Its function is not to provide high starting torque but to support efficient and balanced motor operation while the motor is running.

Applications of Motor Start and Run Capacitors

Motor start and run capacitors are commonly used in single-phase AC motor applications where electrical supply is limited to single-phase power. These applications are widespread in residential, commercial, and light industrial environments that require moderate motor power and simple electrical connections.

In household appliances such as washing machines, dryers, refrigerators, and vacuum cleaners, capacitors support reliable motor operation during both startup and normal use. Start capacitors assist the motor in beginning rotation under load, while run capacitors help maintain smooth and steady performance once the motor is operating.

Power tools, including drills, saws, and grinders, use single-phase motors with capacitors to handle frequent starts and variable loads. The presence of capacitors allows these tools to develop sufficient starting force while maintaining compact size and portability.

In pumps and compressors, such as water pumps, air compressors, and refrigeration compressors, motor capacitors enable startup against mechanical resistance and help sustain consistent operation. These systems often begin operation under load, making capacitors essential for dependable motor performance.

Air-conditioning systems also rely on motor start and run capacitors for fan and compressor motors. In residential and small commercial installations, single-phase motor designs are commonly used due to their compatibility with standard power supplies and straightforward electrical requirements.

Advantages and Limitations of Motor Starting Capacitors

Advantages	Limitations
Provides high starting torque for single-phase motors	Designed for short-term use only
Enables reliable self-starting from standstill	Can overheat if left energized too long
Simple and low-cost solution	Limited lifespan due to high electrical stress
Easy to integrate into motor circuits	Sensitive to temperature extremes
Improves startup performance under load	Larger physical size for higher capacitance
Reduces startup current duration	Not suitable for continuous operation
Compatible with standard single-phase power	Capacitance value must be closely matched
Widely available in standard ratings	Electrolytic types degrade over time
Supports compact motor designs	Failure can prevent motor from starting
Minimal control circuitry required	Requires additional switching components

Conclusion

A motor starting capacitor plays a quiet but important role in helping single-phase motors work as expected. It supports motor startup by allowing rotation to begin smoothly and reliably. Understanding why it is needed explains the limits of single-phase power and how those limits are addressed in practical designs. Knowing the difference between start and run capacitors helps you avoid incorrect replacements. By looking at real-world applications, you can see how common these components are in everyday equipment. When you choose the right capacitor, you help maintain steady operation and reduce stress on the motor.
