ST1S14PHR Power Regulator Explained with Practical Uses

The ST1S14PHR is a power regulator that helps manage and control voltage in different devices, delivering up to 3A of current while keeping the design compact and efficient. It works with a wide input voltage range, making it flexible for various applications, from powering LED lighting to industrial equipment. With built-in features like soft-start, thermal shutdown, and current limiting, it ensures reliable operation while protecting your system from overloads or overheating. In this article, we'll explore how this regulator functions, its key features, and why it's a good fit for your power management needs.

Catalog

Overview of ST1S14PHR

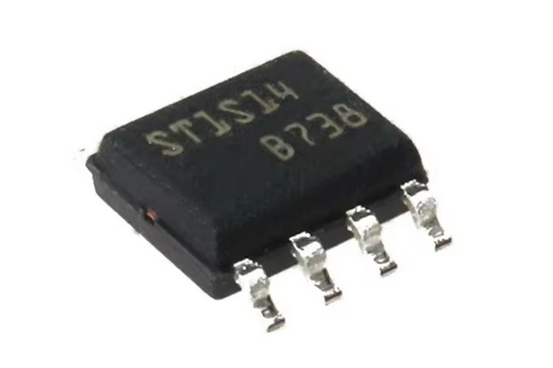

The ST1S14PHR from STMicroelectronics is a step-down monolithic power switching regulator, designed to deliver up to 3 A DC current to the load, depending on application needs. With an input voltage range spanning 5.5 V to 48 V, it offers flexible output voltage adjustment from 1.22 V to 43.2 V, making it suitable for a wide array of applications. Using an internal N-channel DMOS transistor with a low 200 mΩ on-resistance, it minimizes the need for large external components, making the design more compact and manageable. The built-in oscillator sets a fixed switching frequency of 850 kHz, contributing to a stable and efficient output.

The ST1S14PHR includes features such as an internal soft-start, which smoothly ramps up the output voltage to prevent overshoot and reduce current surges. Its power-good open collector output signals when the output voltage is stable, useful for sequencing and fault detection. Additionally, it operates with a current mode architecture for fast response to load changes, and its embedded compensation network removes the need for extra components to stabilize the feedback loop. This device can even handle zero-load operation, maintaining output regulation with minimal input current. To ensure reliable operation, the ST1S14PHR is equipped with thermal shutdown and current limiting, protecting it against overheating and overloads. Housed in an HSOP8 package with an exposed frame, it achieves a lower thermal resistance of around 40 °C/W, ideal for high-demand automotive and industrial uses.

Key Features of ST1S14PHR

Internal Soft-Start

The internal soft-start feature gradually raises the output voltage from zero to the intended value, preventing sudden output surges and reducing current spikes during startup. This helps safeguard the regulator and any connected components from potential damage due to sudden increases in current.

Power Good Open Collector Output

This output pin provides a signal when the output voltage is within the expected range. It’s useful in applications that need controlled power sequencing, ensuring components are activated in the right order, or for fault detection, alerting you when the output voltage is outside the desired limits.

Current Mode Architecture

The current mode control architecture provides fast response when loads change, keeping the output stable even if the input voltage varies. This architecture also makes feedback design easier and improves line regulation.

Embedded Compensation Network

The embedded compensation network simplifies setup by stabilizing the system without needing extra external parts. This internal network streamlines the design and provides reliable performance, eliminating the need for added components in the feedback loop.

Zero Load Current Operation

The regulator keeps a stable output even with no load connected, drawing very low input current. This feature helps in saving power, especially in low-energy applications or systems in standby mode.

Internal Current Limiting

This built-in current limiting protects the regulator against overloads or short circuits by capping the output current to a safe level. This safeguard reduces the chance of damage if unexpected high currents occur.

Inhibit for Zero Current Consumption

The inhibit function allows you to completely disable the regulator by setting the inhibit pin low. This reduces input current to less than 1 μA, which is useful for saving energy in designs that occasionally need to shut down.

2 mA Maximum Quiescent Current Over Temperature Range

With a maximum quiescent current of only 2 mA across all operating temperatures, the ST1S14PHR uses very little power even at low loads, making it efficient and effective in environments where temperatures vary widely.

Thermal Shutdown

The thermal shutdown function turns off the switching element if the junction temperature goes beyond a safe threshold. This feature helps prevent overheating, extending the life of the regulator by keeping it within safe operating temperatures.

Technical Specifications

The STMicroelectronics ST1S14PHR features a range of technical specifications, attributes, and performance parameters. These details outline its voltage range, current capacity, and thermal properties. There are also alternative parts with similar specifications available, which can be suitable for various applications. This information helps in determining how the ST1S14PHR fits into different designs and systems.

Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 7 months ago)
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width) Exposed Pad
Number of Pins	8
Operating Temperature	-40°C ~ 125°C TJ
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Position	DUAL
Terminal Form	GULL WING
Base Part Number	ST1S14
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	48V
Output Voltage	1.22V
Output Type	Adjustable
Max Output Current	3A
Operating Supply Voltage	48V
Voltage - Input (Min)	5.5V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Max Output Voltage	43.2V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	850kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Min Output Voltage	1.22V
Height	1.6mm
Length	5mm
Width	4mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

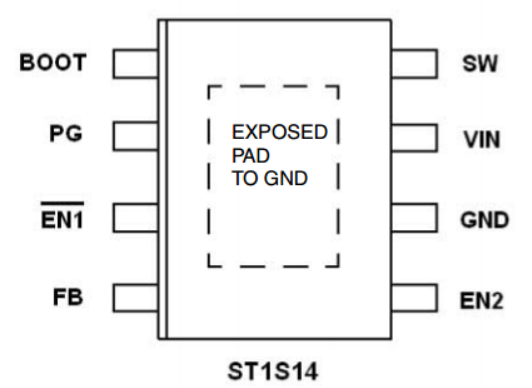

Pin Configuration of ST1S14PHR

N	Pin	Description
1	BOOT	Bootstrap capacitor for N-channel gate driver. Connects 100 nF low ESR capacitor from BOOT pin to SW
2	PG	Power good
3	EN1	Enable pin active low
4	FB	Feedback voltage
5	EN2	Enable pin active high
6	GND	Ground pin
7	V_IN	Input supply pin
8	SW	Switching node
E.p.	E.p.	Exposed pad must be connected to GND

CAD Model of ST1S14PHR

Symbol

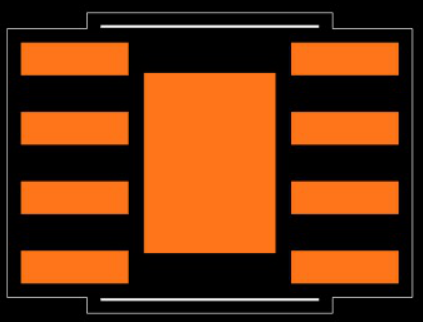

Footprint

3D Model

Alternative Options for ST1S14PHR

Part Number	Description	Manufacturer
LTM8026IY#PBF	36VIN, 5A CVCC Step-Down µModule (Power Module) Regulator	Analog Devices Inc

Practical Uses of ST1S14PHR

LED Lighting

The ST1S14PHR can power LED drivers that need a constant current and can work over a wide range of input voltages. Dimming is also possible by adjusting either the inhibit pin or the feedback pin, making this device flexible for various lighting control setups.

Power Management

The regulator provides a steady output voltage, suitable for powering different loads like microcontrollers, sensors, actuators, and communication modules. Additionally, the power good signal can be used to manage power sequencing or detect faults, adding a layer of reliability to your setup.

Automation and Process Control

This regulator is well-suited for industrial equipment such as motors, pumps, valves, and solenoids, which often run in challenging environments. With features like current limiting, thermal shutdown, and zero-load operation, the ST1S14PHR remains dependable even under demanding conditions, helping ensure steady and safe operation in your automation and control applications.

Manufacturer Background: STMicroelectronics

STMicroelectronics, founded in 1987, is a leader in the development of products for applications in mobility, power, and the growing IoT (Internet of Things). Headquartered in Geneva, Switzerland, with legal registration in Amsterdam, Netherlands, STMicroelectronics emerged from the merger of SGS Microelettronica of Italy and Thomson Semiconducteurs of France. With a global presence in 35 countries, it operates with a strong commitment to sustainability, innovation, and ethical standards. STMicroelectronics offers one of the most comprehensive technology portfolios in the industry, covering analog, digital, and mixed-signal products, microcontrollers, memory, power devices, sensors, wireless solutions, and security solutions. The company’s commitment to providing quality and robust solutions has made it a trusted provider in markets around the world.

Parts with Similar Specs

The three components listed on the right have specifications similar to the STMicroelectronics ST1S14PHR.

Part Number	ST1S14PHR	TPS54328DDAR	TPS54327DDA	NCP3170BDR2G
Manufacturer	STMicroelectronics	Texas Instruments	Texas Instruments	ON Semiconductor
Package / Case	8-SOIC (0.154, 3.90mm)	8-PowerSOIC (0.15")	8-SOIC (0.154")	8-PowerSOIC (0.15")
Number of Pins	8	8	8	8
Number of Outputs	1	1	1	1
Max Output Current	3A	3A	3A	3A
Frequency - Switching	850kHz	700kHz	1MHz	700kHz
Voltage - Input (Min)	5.5V	4.5V	4.5V	4.5V
Voltage - Input (Max)	48V	-	18V	-
Min Output Voltage	1.22V	760mV	1.25V	760mV
Output Voltage	1.22V	5V	5V	7V
Max Output Voltage	43.2V	7V	7V	7V
Voltage - Output (Max)	43.2V	-	17.28V	-

Frequently Asked Questions [FAQ]

1. What is the ST1S14PHR?

The ST1S14PHR is a step-down power switching regulator that provides up to 3 A of DC current to the load, depending on the application. It operates within an input voltage range of 5.5 V to 48 V and offers an adjustable output voltage from 1.22 V to 43.2 V.

2. What is the package of the ST1S14PHR?

The ST1S14PHR comes in an HSOP8 package with an exposed frame, which helps lower thermal resistance to around 40 °C/W. This design supports good heat dissipation, making it well-suited for applications where managing temperature is needed.

3. What are the common problems or failures of the ST1S14PHR?

Some common issues with the ST1S14PHR include output voltage overshoot or undershoot, which can result from incorrect choices in the output capacitor, feedback resistor, or compensation network. Following the datasheet’s guidance and using tools like eDesignSuite can help in selecting the right components to avoid these problems. Output voltage ripple or noise may also occur due to parasitic inductance or resistance in PCB traces, or issues with input/output capacitors or the feedback network. Using low ESR capacitors, short and wide PCB traces, and proper grounding can help reduce this noise. Overheating or thermal shutdowns may happen due to high power dissipation, elevated ambient temperatures, or lack of proper heat sinking. Preventing these issues involves calculating power dissipation, checking junction temperature, and providing adequate heat sinking.
