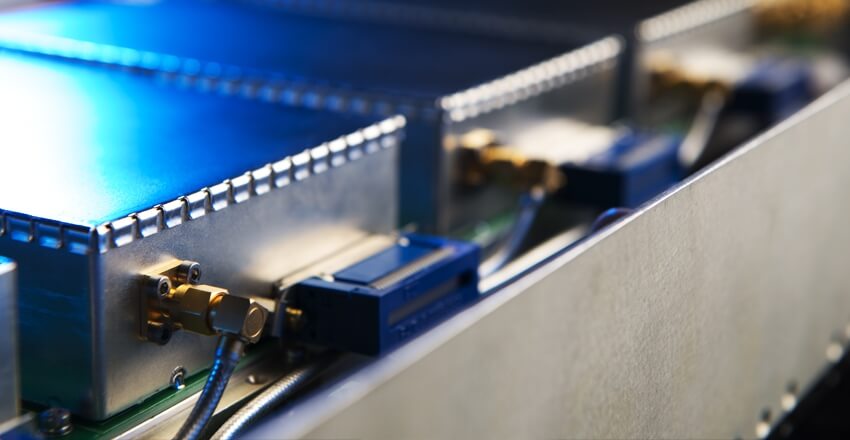

RF Power Amplifiers: How They Work, Which Type Is More Efficient

In electronic applications, selecting an RF power amplifier (RFPA) that provides higher output power levels is essential. Output power is typically characterized by parameters such as the saturation power level, which represents the point at which increasing input power no longer results in a corresponding increase in output power. Another critical parameter is efficiency, which quantifies the amplifier’s ability to convert input energy into usable output power. Higher efficiency minimizes heat dissipation, reducing unnecessary thermal effects.

Catalog

What is an RF Power Amplifier?

An RF power amplifier (RFPA) is an electronic device primarily designed to amplify an input RF signal to a higher power level, meeting the power requirements of applications such as wireless communication, radar systems, and satellite communication. It enhances low-power signals to levels sufficient to drive antennas or other RF components, ensuring long-distance signal transmission while maintaining optimal reception quality.

Working Principle of RF Power Amplifiers

The working principle of RF power amplifiers is based on the amplification characteristics of semiconductor devices, particularly transistors. Initially, before entering the amplifier, the RF signal passes through an input matching circuit. The primary function of this matching circuit is to align the impedance of the input signal with the amplifier’s input impedance, ensuring optimal power transfer and minimal signal reflection.

Next, the RF signal is applied to the transistor in the amplifier’s core circuit. The transistor utilizes its current or voltage control capability to amplify the input signal’s amplitude, converting it into a higher power output. Finally, the amplified RF signal exits the power amplifier through an output matching circuit.

Key Features of RF Power Amplifiers

High Power Output: RF power amplifiers can amplify weak RF signals to power levels ranging from several watts to thousands of watts, ensuring effective antenna drive for long-distance transmission.

High Efficiency: By employing carefully designed circuits and advanced power devices such as Gallium Nitride (GaN) and Silicon Carbide (SiC), RF power amplifiers achieve efficient energy conversion, minimizing power consumption and heat generation.

Excellent Linearity: RF power amplifiers maintain a linear relationship between input and output signals, significantly reducing signal distortion and interference, thereby improving the dynamic range and transmission quality of communication systems.

Wide Frequency Range: RF power amplifiers can cover a broad frequency range, from RF to microwave and even millimeter-wave bands, meeting the requirements of various applications.

Types of RF Power Amplifiers

Class A Amplifiers

Among various power amplifier configurations, Class A amplifiers are the simplest and most linear. These amplifiers use a single switching transistor in a standard common-emitter arrangement, producing an inverted output. The transistor is permanently biased in the “ON” state, ensuring conduction throughout the entire input signal cycle. This continuous operation results in minimal distortion and maximizes output signal amplitude.

A key characteristic of Class A amplifiers is their uninterrupted conduction throughout the entire 360° input cycle. This feature prevents frequency division or switching distortion, making them an ideal benchmark for linear amplification. The output stage of a Class A amplifier can consist of a single power transistor or a pair of transistors configured to share a significant load current.

Class B Amplifiers

Regardless of whether they use transistors or vacuum tubes, Class B amplifiers operate on the same principle: the operating point is configured so that the amplifier's quiescent current is zero. In a push-pull configuration, two transistors alternately conduct during each half-cycle of the input signal, effectively amplifying each corresponding half-cycle.

To ensure distortion-free amplification of each half-cycle, transistors require proper bias current to exceed the base-emitter voltage drop. A notable issue in Class B amplifiers is crossover distortion, which occurs when the input signal is smaller than the base-emitter voltage (V_BE), causing the transistors to stop conducting. This results in a brief interval during the transition between positive and negative half-cycles where neither the NPN nor the PNP transistor is active, leading to crossover distortion and alternating signal distortion.

Class AB Amplifiers

Class AB amplifiers share characteristics with Class B amplifiers but have a crucial distinction: they use a push-pull configuration to combine the positive and negative half-waves of the input signal. This arrangement minimizes frequency division distortion during amplification.

Another key difference among Class AB amplifiers is their linearity. While Class AB amplifiers offer good linearity, their output current levels are lower, making their efficiency typically lower than that of Class A amplifiers.

Class AB amplifiers are among the most efficient RF power amplifiers available. However, they come with notable limitations—cost is a major drawback. These amplifiers are larger and more expensive than Class A amplifiers, making them less suitable for compact radio communication devices.

Class C Power Amplifiers

Class C amplifiers operate differently from Class A and AB designs. They use a conduction angle of less than 180 degrees, resulting in high efficiency but at the cost of increased distortion. However, this distortion can be mitigated using resonant circuits that filter out harmonics, ensuring the amplified signal remains suitable for specific RF applications.

When using a Class C amplifier to drive an RF power amplifier, proper matching of the output stage is crucial to maintain power efficiency. One way to achieve this is through parallel impedance matching, which reduces the internal impedance of the RF power amplifier while doubling the circuit board current, thereby generating higher power.

Class G Amplifiers

Class G amplifiers are among the most efficient RF power amplifiers. They improve efficiency by limiting the power supply voltage to the output transistors. By dynamically adjusting the voltage levels, Class G amplifiers reduce power consumption, allowing them to operate at lower supply voltages while maintaining high output power.

However, the complexity of Class G amplifiers increases manufacturing costs. They require intricate power management circuits, making them more expensive than other amplifier types. Additionally, while they offer higher output power, achieving this requires increased power supply capacity.

Class J Amplifiers

Class J amplifiers differ from traditional RF power amplifiers in that they utilize a nonlinear output capacitance (Cout). This configuration is specifically tuned to the fundamental frequency at low power levels, optimizing efficiency.

A key feature of Class J amplifiers is their ability to generate highly efficient RF signals while reducing voltage stress. This amplifier type employs a branched circuit topology, allowing the transistor to switch between conduction and grounding phases. By precisely managing voltage and current waveforms, Class J amplifiers achieve superior performance in high-frequency RF applications.

Conclusion

RF power amplifiers are essential components that convert RF signals into electrical energy. In practical applications, selecting the appropriate RF power amplifier type requires a comprehensive evaluation of factors such as output power, efficiency, linearity, and frequency range.

With the advancement of new materials and technologies, such as wide-bandgap semiconductors like Gallium Nitride (GaN) and Silicon Carbide (SiC), the performance of RF power amplifiers will continue to improve. These advancements will meet the growing demand for high-efficiency, high-power amplification in future communication and electronic systems.
