Manufacturer Part Number
MC33274APG
Manufacturer
onsemi
Introduction
Precision quad operational amplifier with low offset voltage and high gain bandwidth
Suitable for a wide range of instrumentation and general-purpose applications
Product Features and Performance
4 independent operational amplifiers in a single package
Wide supply voltage range of 3V to 36V
Low input offset voltage of 100μV
High gain bandwidth of 24MHz
Slew rate of 10V/μs
Low input bias current of 300nA
Output current capability of 37mA per channel
Product Advantages

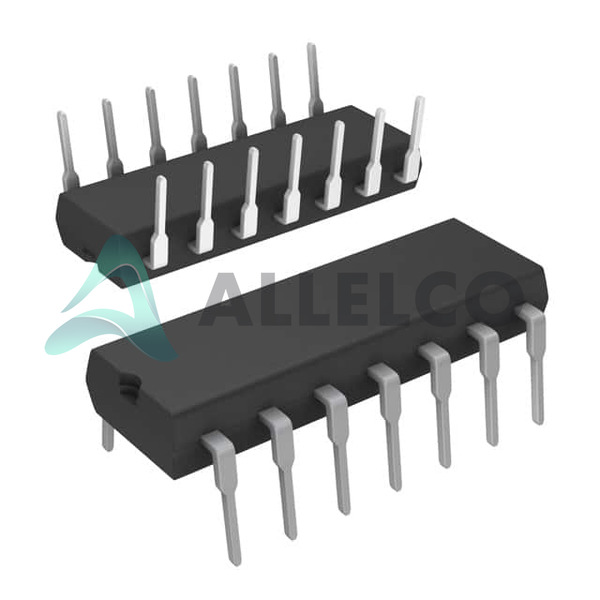

Compact 14-pin PDIP package for easy integration
Wide temperature range of -40°C to 85°C
Excellent performance for instrumentation and general-purpose applications
Versatile quad configuration for efficient circuit design
Key Technical Parameters
Supply voltage range: 3V to 36V
Input offset voltage: 100μV
Gain bandwidth product: 24MHz
Slew rate: 10V/μs
Input bias current: 300nA
Output current per channel: 37mA
Quality and Safety Features
Robust construction for reliable performance
Compliance with industry safety standards
Compatibility
Compatible with a wide range of electronic systems and circuits
Application Areas
Instrumentation and test equipment
Industrial control systems
Audio and video circuits
Medical electronics
General-purpose amplification and buffering
Product Lifecycle
This product is currently in active production and is not nearing discontinuation.
Replacement or upgraded parts may be available in the future as technology evolves.
Key Reasons to Choose This Product
Excellent performance and versatility for a wide range of applications
Compact and easy-to-integrate package
Reliable and robust construction
Wide operating temperature range
Competitive pricing and availability
