Home Products Connectors, Interconnects D-Sub Connector Assemblies~~ASUB-277-25TP30~~

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

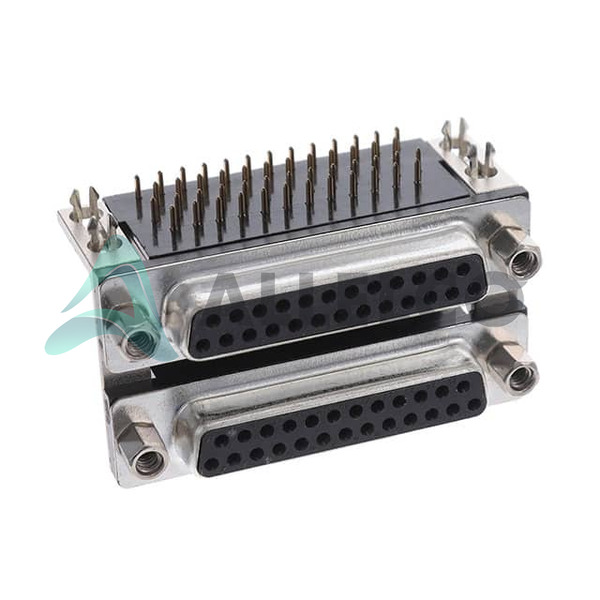

ASUB-277-25TP30 - Assmann WSW Components

Manufacturer Part Number: ASUB-277-25TP30

Manufacturer: ASSMANN WSW Components

Allelco Part Number: 98D-ASUB-277-25TP30

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: D-SUB DUAL PORT F/F 25PIN

Package: Tray

Data sheet: 1.ASUB-277-25TP30.pdf ...

Datasheets
ASUB-277-xxTPxx.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 39640

Unit Price: $9.369
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$9.369	$9.37
200+	$3.739	$747.80
500+	$3.614	$1,807.00
1000+	$3.552	$3,552.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

ASUB-277-25TP30 Tech Specifications
Assmann WSW Components - ASUB-277-25TP30 technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components - ASUB-277-25TP30

Product Attribute	Attribute Value
Manufacturer	ASSMANN WSW Components
Wire Gauge	-
Voltage Rating	250V
Termination	Solder
Shell Size, Connector Layout	3 (DB, B); 3 (DB, B)
Shell Material, Finish	Steel
Series	-
Primary Material	Metal
Package	Tray
Operating Temperature	-55°C ~ 105°C
Number of Rows	2, 2
Number of Positions	25, 25
Mounting Type	Through Hole, Right Angle
Material Flammability Rating	UL94 V-0

Product Attribute	Attribute Value
Ingress Protection	-
Flange Feature	Housing/Shell (4-40)
Features	Board Lock
Dielectric Material	Polybutylene Terephthalate (PBT)
Current Rating (Amps)	3A
Contact Type	Signal
Contact Material	Copper Alloy
Contact Form	-
Contact Finish Thickness	Flash
Contact Finish	Gold
Connector Type	Receptacle, Female Sockets
Connector Style	D-Sub - Stacked
Color	Black
Backset Spacing	-

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040

Parts with Similar Specifications

The three parts on the right have similar specifications to Assmann WSW Components ASUB-277-25TP30

Product Attribute
Part Number	ASUB-277-25TP23	ASUB-277-25TP26	ASUB-277-15TP23	ASUB-277-25TP25
Manufacturer	Assmann WSW Components	Assmann WSW Components	Assmann WSW Components	Assmann WSW Components
Ingress Protection	-	-	-	-
Contact Finish Thickness	-	-	-	-
Contact Type	-	-	-	-
Voltage Rating	-	-	-	-
Number of Rows	-	-	-	-
Shell Material, Finish	-	-	-	-
Contact Material	-	-	-	-
Termination	-	-	-	-
Shell Size, Connector Layout	-	-	-	-
Material Flammability Rating	-	-	-	-
Connector Style	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Wire Gauge	-	-	-	-
Primary Material	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Series	-	-	-	-
Number of Positions	-	-	-	-
Color	-	-	-	-
Current Rating (Amps)	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Features	-	-	-	Simultaneous Sampling
Backset Spacing	-	-	-	-
Dielectric Material	-	-	-	-
Flange Feature	-	-	-	-
Contact Finish	-	-	-	-
Contact Form	-	-	-	-
Connector Type	-	-	-	-
