HomeProductsConnectors, InterconnectsRectangular Connectors - Headers, Male PinsDF11-28DP-2DSA(24)

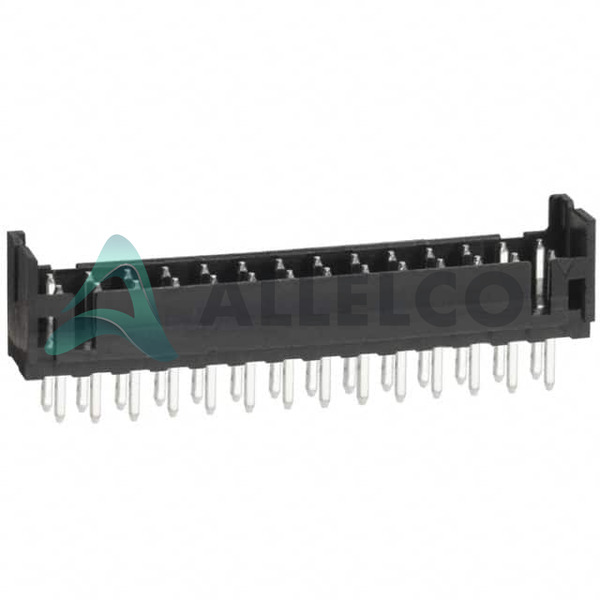

DF11-28DP-2DSA(24) Image
DF11-28DP-2DSA(24) Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

DF11-28DP-2DSA(24) - Hirose Electric Co Ltd

Manufacturer Part Number
DF11-28DP-2DSA(24)
Manufacturer
Hirose
Allelco Part Number
32D-DF11-28DP-2DSA(24)
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
CONN HEADER VERT 28POS 2MM
Package
Tube
Data sheet
-
RoHs Status
RoHS Compliant
Compare
Our certification
In stock: 84760
  • Unit Price: $0.539
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.539 $0.54
192+ $0.216 $41.47
496+ $0.208 $103.17
992+ $0.204 $202.37
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

DF11-28DP-2DSA(24) Tech Specifications
Hirose Electric Co Ltd - DF11-28DP-2DSA(24) technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd - DF11-28DP-2DSA(24)

Product Attribute Attribute Value
Manufacturer Hirose
Voltage Rating 250V
Termination Solder
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Series DF11
Row Spacing - Mating 0.079" (2.00mm)
Pitch - Mating 0.079" (2.00mm)
Package Tube
Overall Contact Length 0.299" (7.60mm)
Operating Temperature -30°C ~ 85°C
Number of Rows 2
Number of Positions Loaded All
Number of Positions 28
Mounting Type Through Hole
Material Flammability Rating UL94 V-0
Mated Stacking Heights 7.55, 7.8mm, 8.9mm
Insulation Material Polyamide (PA), Nylon
Product Attribute Attribute Value
Insulation Height 0.260" (6.60mm)
Insulation Color Black
Ingress Protection -
Features -
Fastening Type Detent Lock
Current Rating (Amps) 2A
Contact Type Male Pin
Contact Shape Square
Contact Material Brass
Contact Length - Post 0.118" (3.00mm)
Contact Length - Mating 0.118" (3.00mm)
Contact Finish Thickness - Post -
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Finish - Mating Tin
Connector Type Header
Base Product Number DF11
Applications -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040

Parts Introduction

Manufacturer Part Number

DF11-28DP-2DSA(24)

Manufacturer

Hirose

Introduction

This Hirose DF11 series rectangular connector header with 28 male pins is designed for board-to-board or cable-to-board applications. It features a shrouded design with a detent lock for secure mating and has a compact footprint with a 2.00mm pitch.

Product Features and Performance

28 male pins in a 2-row configuration

00mm (0.079") pitch

00mm (0.118") mating and post contact length

Tin plated contacts

Polyamide (PA) / Nylon insulation

Operating temperature range of -30°C to 85°C

UL94 V-0 flammability rating

2A current rating, 250V voltage rating

Mated stacking heights of 7.55mm, 7.8mm, and 8.9mm

Product Advantages

Compact and space-saving design

Secure mating with detent lock

Wide operating temperature range

Excellent electrical and mechanical performance

Key Reasons to Choose This Product

Reliable and durable connector solution for board-to-board and cable-to-board applications

Compact size and multiple stacking height options for flexibility in design

Compliant with industry safety standards

Competitively priced for cost-effective implementation

Quality and Safety Features

UL94 V-0 flammability rating for enhanced safety

Tin plated contacts for reliable electrical performance

Polyamide (PA) / Nylon insulation for durability

Compatibility

This connector is compatible with the Hirose DF11 series and can be used in various board-to-board and cable-to-board applications.

Application Areas

Industrial equipment

Automation and control systems

Consumer electronics

Medical devices

Telecommunications equipment

Product Lifecycle

The DF11-28DP-2DSA(24) is an active product in the Hirose DF11 series. There are equivalent and alternative models available, such as the DF11-30DP-2DSA(24) and DF11-40DP-2DSA(24). For more information on product availability and alternatives, please contact our website's sales team.

Parts with Similar Specifications

The three parts on the right have similar specifications to Hirose Electric Co Ltd DF11-28DP-2DSA(24)

Product Attribute DF11-28DP-2DSA(20) DF11-28DP-2DS(24) DF11-28DP-2DS(22) DF11-28DP-2DSA(01)
Part Number DF11-28DP-2DSA(20) DF11-28DP-2DS(24) DF11-28DP-2DS(22) DF11-28DP-2DSA(01)
Manufacturer Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd Hirose Electric Co Ltd
Contact Finish Thickness - Mating - - - -
Style - - - -
Applications - - - -
Voltage Rating - - - -
Termination - - - -
Row Spacing - Mating - - - -
Connector Type - - - -
Overall Contact Length - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Contact Type - - - -
Contact Finish - Mating - - - -
Mated Stacking Heights - - - -
Contact Length - Post - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Contact Material - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Insulation Material - - - -
Series - - - -
Shrouding - - - -
Contact Length - Mating - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Fastening Type - - - -
Contact Finish - Post - - - -
Ingress Protection - - - -
Features - - - Simultaneous Sampling
Material Flammability Rating - - - -
Contact Shape - - - -
Current Rating (Amps) - - - -
Insulation Color - - - -
Number of Rows - - - -
Number of Positions Loaded - - - -
Pitch - Mating - - - -
Insulation Height - - - -
Number of Positions - - - -
Contact Finish Thickness - Post - - - -
