Specifications

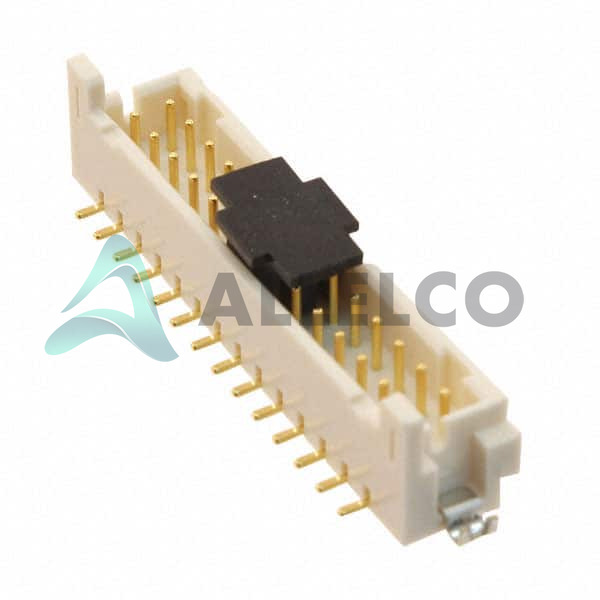

DF11-28DP-2V(57) Tech Specifications
Hirose Electric Co Ltd - DF11-28DP-2V(57) technical specifications, attributes, parameters and parts with similar specifications to Hirose Electric Co Ltd - DF11-28DP-2V(57)
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Hirose |
|
| Voltage Rating |
250V |
|
| Termination |
Solder |
|
| Style |
Board to Board or Cable |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
DF11 |
|
| Row Spacing - Mating |
0.079' (2.00mm) |
|
| Pitch - Mating |
0.079' (2.00mm) |
|
| Package |
Tape & Reel (TR) |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-30°C ~ 85°C |
|
| Number of Rows |
2 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
28 |
|
| Mounting Type |
Surface Mount |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
8.2mm, 8.45mm, 9.55mm |
|
| Insulation Material |
Polyamide (PA), Nylon |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.283' (7.19mm) |
|
| Insulation Color |
Beige |
|
| Ingress Protection |
- |
|
| Features |
Board Guide, Solder Retention |
|
| Fastening Type |
Detent Lock |
|
| Current Rating (Amps) |
2A |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Circular |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
- |
|
| Contact Length - Mating |
- |
|
| Contact Finish Thickness - Post |
- |
|
| Contact Finish Thickness - Mating |
8.00µin (0.203µm) |
|
| Contact Finish - Post |
- |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Header |
|
| Applications |
- |
|
