HomeProductsIntegrated Circuits (ICs)Data Acquisition - Analog to Digital Converters (ADC)ADC101S051CIMF

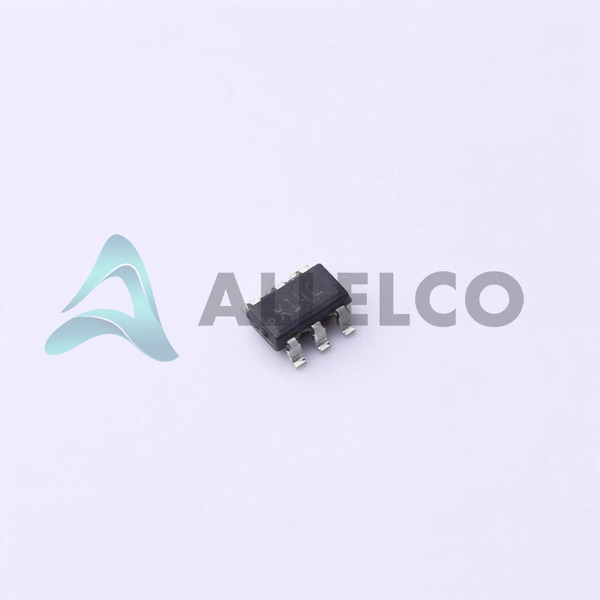

ADC101S051CIMF Image
ADC101S051CIMF Image - 1ADC101S051CIMF Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ADC101S051CIMF - Texas Instruments

Manufacturer Part Number
ADC101S051CIMF
Manufacturer
Texas Instruments
Allelco Part Number
32D-ADC101S051CIMF
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC ADC 10BIT SAR SOT23-6
Package
SOT-23-6
Data sheet
-
Compare
Our certification
In stock: 12240
  • Unit Price: $1.725
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.725 $1.73
10+ $1.473 $14.73
30+ $1.317 $39.51
100+ $1.155 $115.50
355+ $1.082 $384.11
1065+ $1.051 $1,119.32
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ADC101S051CIMF Tech Specifications
Texas Instruments - ADC101S051CIMF technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ADC101S051CIMF

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Digital 2.7V ~ 5.25V
Voltage - Supply, Analog 2.7V ~ 5.25V
Supplier Device Package SOT-23-6
Series -
Sampling Rate (Per Second) 500k
Reference Type Supply
Ratio - S/H:ADC 1:1
Package / Case SOT-23-6
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C
Product Attribute Attribute Value
Number of Inputs 1
Number of Bits 10
Number of A/D Converters 1
Mounting Type Surface Mount
Input Type Single Ended
Features -
Data Interface SPI, DSP
Configuration S/H-ADC
Base Product Number ADC101S
Architecture SAR

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

ADC101S051CIMF

Manufacturer

Texas Instruments

Introduction

The ADC101S051CIMF is an Analog to Digital Converter (ADC) by Texas Instruments, designed for data acquisition in embedded systems.

Product Features and Performance

10-bit resolution

Sampling rate up to 500k samples per second

Single-ended input

SPI and DSP data interface

Sample-and-Hold (S/H) and ADC integrated in a 1:1 ratio

Successive Approximation Register (SAR) architecture

Uses supply voltage as the reference

Wide supply voltage range: 2.7V to 5.25V

Supports a wide operating temperature range from -40°C to 85°C

Product Advantages

High precision with a 10-bit resolution

Fast data acquisition capabilities with a sampling rate of 500k

Suitable for a variety of power supplies due to a wide voltage range

Simple interfacing with microcontrollers through SPI or DSP

Robust performance in a broad range of environmental conditions

Key Technical Parameters

Number of Bits: 10

Sampling Rate: 500k samples/sec

Input Type: Single Ended

Data Interface: SPI, DSP

Voltage Supply Range: 2.7V to 5.25V

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Built in a compact SOT-23-6 package for reliable surface mounting

Engineered for high reliability and stability across its operational temperature range

Compatibility

Compatible with a broad range of microcontrollers and digital signal processors through SPI and DSP interfaces

Application Areas

Embedded systems

Data logging devices

Portable instrumentation

Industrial controls

Medical equipment

Product Lifecycle

This product is classified as Obsolete, indicating that it may be nearing discontinuation. Users should verify the availability of replacements or upgrades.

Several Key Reasons to Choose This Product

High-performance ADC with a reliable SAR architecture for precise data acquisition

Fast sampling rate suitable for real-time applications

Flexible power supply options accommodate various system designs

Easy integration into existing systems with SPI and DSP compatibility

Suitable for applications requiring operation under varying temperatures and conditions

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments ADC101S051CIMF

Product Attribute ADC101S051CIMFX/NOPB ADC101S021CIMFX/NOPB ADC101S021CIMFX ADC101S021CIMF
Part Number ADC101S051CIMFX/NOPB ADC101S021CIMFX/NOPB ADC101S021CIMFX ADC101S021CIMF
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Input Type - - - Differential
Number of Bits - 16 8 14
Voltage - Supply, Digital - 1.14V ~ 1.26V 11.4V ~ 16.5V 1.65V ~ 3.6V
Mounting Type - Surface Mount Through Hole Surface Mount
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Number of Inputs - - - 2
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Data Interface - LVDS - Parallel I²C LVDS - Parallel, Parallel
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Features - - - Simultaneous Sampling
Base Product Number - DAC34H84 MAX500 ADS62P42
Architecture - Current Source R-2R Pipelined
Configuration - - - S/H-ADC
Series - - - -
Reference Type - External, Internal External External, Internal
Voltage - Supply, Analog - 3.14V ~ 3.46V 11.4V ~ 16.5V 3V ~ 3.6V
Number of A/D Converters - - - 2
Ratio - S/H:ADC - - - 1:1
Sampling Rate (Per Second) - - - 65M
