HomeProductsIntegrated Circuits (ICs)Data Acquisition - Analog to Digital Converters (ADC)ADS1220IRVAR

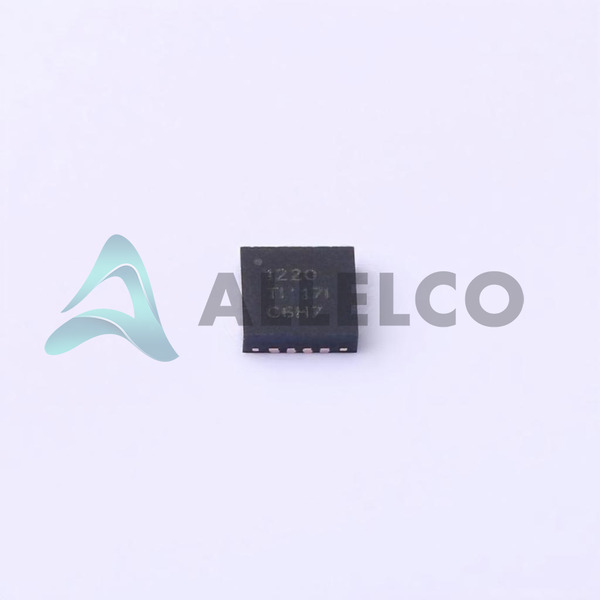

ADS1220IRVAR Image
ADS1220IRVAR Image - 1ADS1220IRVAR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ADS1220IRVAR - Texas Instruments

Manufacturer Part Number
ADS1220IRVAR
Manufacturer
Texas Instruments
Allelco Part Number
32D-ADS1220IRVAR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC ADC 24BIT SIGMA-DELTA 16VQFN
Package
16-VQFN (3.5x3.5)
Data sheet
1.ADS1220IRVAR.pdf ...

HTML Datasheet

ADS1220 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 8198
  • Unit Price: $1.654
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.654 $1.65
10+ $1.415 $14.15
30+ $1.264 $37.92
100+ $1.11 $111.00
500+ $1.041 $520.50
1000+ $1.01 $1,010.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ADS1220IRVAR Tech Specifications
Texas Instruments - ADS1220IRVAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ADS1220IRVAR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Digital 2.3V ~ 5.5V
Voltage - Supply, Analog 2.3V ~ 5.5V, ±2.5
Supplier Device Package 16-VQFN (3.5x3.5)
Series -
Sampling Rate (Per Second) 2k
Reference Type External, Internal, Supply
Ratio - S/H:ADC -
Package / Case 16-VFQFN Exposed Pad
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 125°C
Product Attribute Attribute Value
Number of Inputs 2, 4
Number of Bits 24
Number of A/D Converters 1
Mounting Type Surface Mount
Input Type Differential, Single Ended
Features PGA, Temperature Sensor
Data Interface SPI
Configuration MUX-PGA-ADC
Base Product Number ADS1220
Architecture Sigma-Delta

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

ADS1220IRVAR

Manufacturer

Texas Instruments

Introduction

Precision 24-bit ADC for enhanced digital data acquisition

Product Features and Performance

24-bit resolution for high-precision measurements

2k samples per second delivering fast data throughput

Multiple input channels supporting 2 or 4 inputs

Differential and single-ended input capability

SPI data interface for easy integration with most microcontrollers

Configurable MUX-PGA-ADC for wide-range signal processing

Sigma-Delta architecture providing high noise immunity

Internal and external reference options to accommodate various applications

Programmable Gain Amplifier (PGA) for input signal conditioning

Integrated temperature sensor for environmental monitoring

Product Advantages

High precision and low noise suitable for sensitive applications

Flexible input configuration supports diverse use cases

Compact 16-VFQFN package for space-constrained designs

Efficient power management with a wide 2.3V to 5.5V power supply range

Key Technical Parameters

24-bit resolution ADC

Sampling rate up to 2k samples per second

2 or 4 input channels

SPI Data Interface

Supply voltage range from 2.3V to 5.5V (analog and digital)

Quality and Safety Features

Operates across a wide temperature range (-40°C ~ 125°C)

Compatibility

Compatible with various microcontrollers through SPI

Surface mountable for modern PCB design

Application Areas

Precision measurement instrumentation

Industrial control systems

Patient monitoring

Temperature sensing and control

Product Lifecycle

Product Status: Active

Ongoing support and production with no indication of discontinuation

Several Key Reasons to Choose This Product

High-resolution ADC for accurate data conversion

Flexible input options catering to a broad range of applications

Integrated features like PGA and temperature sensor reduce need for additional components

Reliable performance over a wide temperature range

Backed by Texas Instruments' reputation for quality and long-term availability

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments ADS1220IRVAR

Product Attribute ADS1220IRVAT ADS1220IPWR ADS1222IPWR ADS1220IPW
Part Number ADS1220IRVAT ADS1220IPWR ADS1222IPWR ADS1220IPW
