Manufacturer Part Number

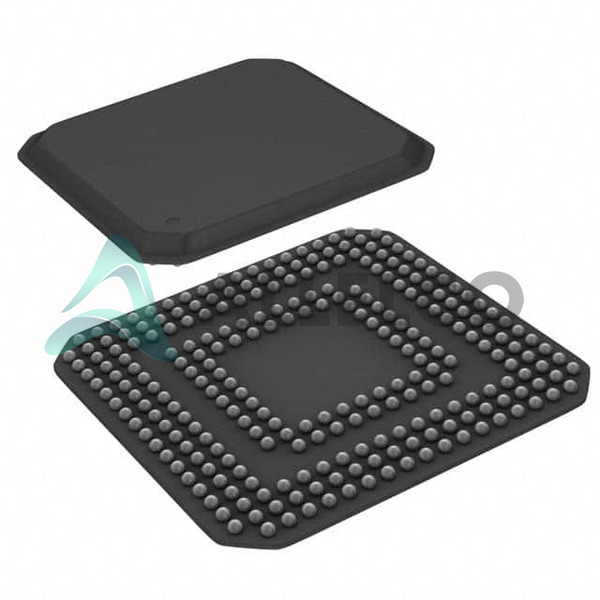

ADS5120CZHK
Manufacturer
Texas Instruments
Introduction
The ADS5120CZHK is a high-performance, 10-bit, 40 MSPS, 8-channel analog-to-digital converter (ADC) from Texas Instruments. It features simultaneous sampling and a pipelined architecture, making it suitable for a wide range of applications, including medical imaging, industrial automation, and communications.
Product Features and Performance
10-bit resolution
40 MSPS sampling rate
8 differential or single-ended input channels
Pipelined architecture
Simultaneous sampling
External or internal reference
65V to 2V analog and digital supply voltages
0°C to 70°C operating temperature range
Product Advantages
High-speed and high-precision performance
Efficient power consumption
Flexible input configurations (differential or single-ended)
Simultaneous sampling for multi-channel applications
Robust pipelined architecture for reliable data conversion
Key Reasons to Choose This Product
Exceptional performance and features for the price point
Ideal for a wide range of high-speed data acquisition applications
Proven reliability and quality from a trusted manufacturer, Texas Instruments
Easy integration and compatibility with a variety of system designs
Quality and Safety Features
Rigorous quality control and testing processes
Compliance with relevant industry standards and regulations
Robust design and construction for reliable operation
Compatibility
The ADS5120CZHK is compatible with a variety of microcontrollers, processors, and other digital systems that require high-speed, high-precision analog-to-digital conversion.
Application Areas
Medical imaging equipment
Industrial automation and control systems
Communications and signal processing applications
Test and measurement equipment
Audio and video signal processing
Product Lifecycle
The ADS5120CZHK is an obsolete product, meaning it is no longer in active production. However, there may be equivalent or alternative models available. Customers are advised to contact our website's sales team for more information on available options and lifecycle status.
