Manufacturer Part Number

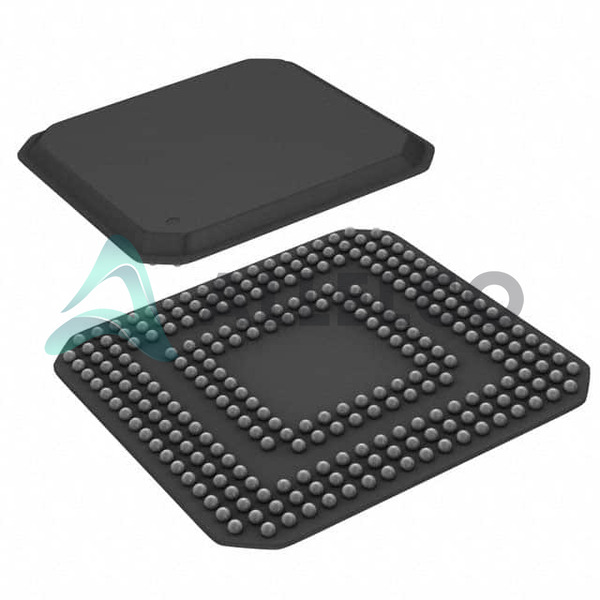

ADS5121IGHK
Manufacturer
Texas Instruments
Introduction
The ADS5121IGHK is a high-speed, multi-channel analog-to-digital converter.
Product Features and Performance
10-bit resolution
40MSPS sampling rate
8 input channels
Differential and single-ended input compatibility
Parallel data interface
Sample-and-hold to ADC ratio of 1:1
8 integrated A/D converters
Uses pipelined architecture
Simultaneous sampling feature for accurate multi-channel measurements
Product Advantages
High-speed data acquisition
Multiple inputs for various signal types
Flexibility with external and internal reference voltage options
Consistency and precision in signal conversion
Key Technical Parameters
Number of Bits: 10
Sampling Rate: 40MSPS
Number of Inputs: 8
Data Interface: Parallel
Voltage Supply Analog: 1.65V ~ 2V
Voltage Supply Digital: 1.65V ~ 2V
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Built to operate reliably within industrial temperature ranges
Precision-engineered for stable performance
Compatibility
Mounting Type: Surface Mount
Compatible with systems requiring high-speed ADC with parallel interfaces
Application Areas
Telecommunications
Medical imaging
Test equipment
Data acquisition systems
Product Lifecycle
Status: Obsolete
Check for potential replacements or upgrades
Several Key Reasons to Choose This Product
High conversion speed ideal for real-time applications
Multi-channel input accommodates diverse signal sources
Pipelined architecture ensures efficient throughput
Wide temperature range supports industrial applications
Texas Instruments' reputation for durable and robust components
