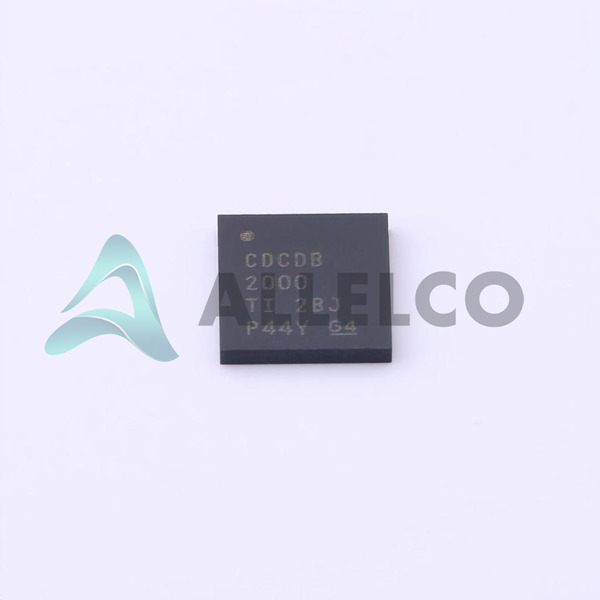

Manufacturer Part Number CDCDB2000NPPR
Manufacturer: Texas Instruments
Integrated Circuits (ICs)
Clock/Timing - Clock Buffers, Drivers
Introduction
The CDCDB2000NPPR is a high-performance clock buffer and driver from Texas Instruments, designed for various timing and synchronization applications in electronic systems.
Product Features and Performance
250 MHz maximum operating frequency
1:20 input to output ratio
Differential HCSL input and output
Supports -40°C to 85°C operating temperature range
Low jitter and skew performance for high-speed clock distribution
Product Advantages
Efficient clock distribution for high-speed digital systems
Preserves signal integrity and timing through differential signaling
Wide operating temperature range for diverse application environments
Compact 80-TLGA (6x6) package for space-constrained designs
Key Technical Parameters
Supply voltage: 3.135V to 3.465V
80-TLGA (6x6) package
Surface mount compatibility
ROHS3 compliant
Quality and Safety Features
Rigorous quality control and testing processes
Compliance with industry safety and environmental standards
Compatibility
Suitable for a wide range of electronic systems and applications that require high-speed clock distribution and synchronization
Application Areas
Networking and communication equipment
Servers and data centers
Industrial automation and control systems
Military and aerospace electronics
Product Lifecycle
The CDCDB2000NPPR is an actively supported product by Texas Instruments, with no known plans for discontinuation.
Replacement or upgrade options may be available from Texas Instruments as technology evolves.
Key Reasons to Choose This Product
Exceptional high-frequency clock distribution performance
Robust differential signaling for reliable operation
Wide operating temperature range for versatile applications
Compact and efficient package design
Backed by the quality and reliability of Texas Instruments
