Manufacturer Part Number
CDCDB2000NPPT
Manufacturer
Texas Instruments
Introduction
The CDCDB2000NPPT is a Clock/Timing Clock Buffer from Texas Instruments designed for high-frequency clock distribution.
Product Features and Performance
Fanout Buffer (Distribution) Type
Supports one circuit operation
High clock frequency distribution up to 250 MHz
Differential input and output ensures signal integrity
Supports HCSL input and output formats
Operates efficiently within a voltage supply range of 3.135V to 3.465V
Functions optimally in a temperature range of -40°C to 85°C
Product Advantages
High fanout ratio of 1:20 enables distribution to multiple outputs

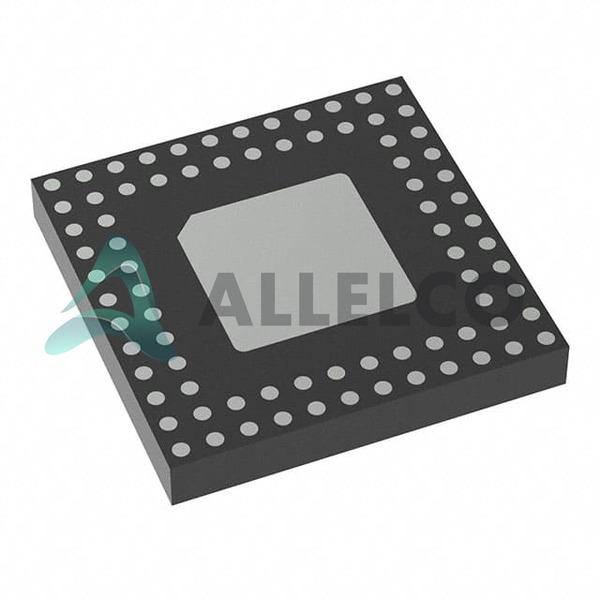

Compact 80-VFLGA exposed pad package
Designed for surface mount technology for easier assembly and space savings
Key Technical Parameters
Number of Circuits: 1
Ratio - Input:Output: 1:20
Differential - Input:Output: Yes/Yes
Frequency - Max: 250 MHz
Voltage - Supply: 3.135V ~ 3.465V
Operating Temperature: -40°C ~ 85°C (TA)
Quality and Safety Features
Offered in a reliable VFLGA exposed pad package
Operates reliably in extended temperature range
Compatibility
Compatible with devices requiring HCSL level clock signals
Application Areas
Suitable for use in telecommunications, servers, and high-performance computing applications
Product Lifecycle
Status: Active
This product is currently active with no immediate plans for discontinuation; availability of replacements or upgrades should be regularly checked with the manufacturer.
Several Key Reasons to Choose This Product
Wide output distribution ratio enhances flexibility in clock management
Support for high frequency up to 250 MHz allows use in high-speed applications
Differential signaling minimizes signal integrity issues in noise-prone environments
Broad operating voltage and temperature range enable use in diverse environmental conditions
Compact and efficient design suitable for high-density electronic assemblies
