Manufacturer Part Number
CLVC16T245MDGGREP
Manufacturer
Texas Instruments
Introduction
The CLVC16T245MDGGREP is a translation transceiver from the 74LVC series, designed by Texas Instruments, primarily used in logic buffers, drivers, receivers, and transceiver applications.
Product Features and Performance
Translation Transceiver Logic Type
Dual Element Configuration
8 Bits per Element
3-State Output Type
Supports Current Output High, Low at 32mA
Operating Voltage Range from 1.65V to 5.5V
Operates in temperatures ranging from -40°C to 85°C
Surface Mount Mounting Type

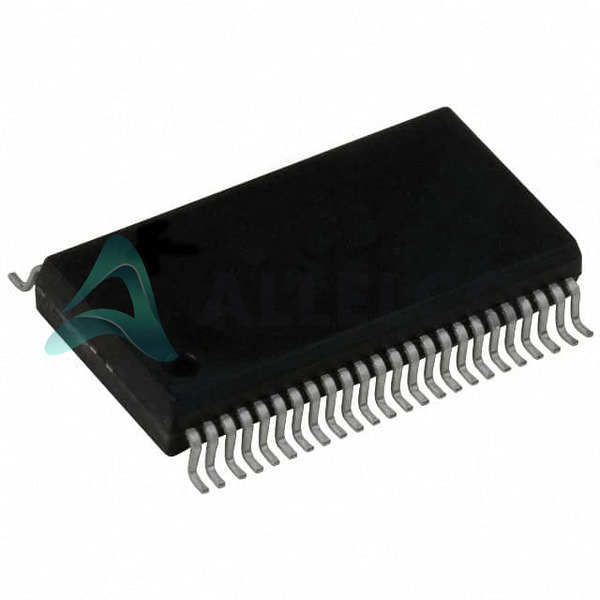

Encapsulated in a 48-TFSOP package
Product Advantages
Flexible voltage range for various design requirements
High output current capacity
Wide operating temperature range suitable for industrial applications
Compact surface mount package aids in space-saving design
Key Technical Parameters
Logic Type: Translation Transceiver
Number of Elements: 2
Bits per Element: 8
Output Type: 3-State
Current Output High, Low: 32mA
Voltage Supply: 1.65V to 5.5V
Operating Temperature: -40°C to 85°C
Quality and Safety Features
Meets industrial standards for quality and reliability
Stringent testing ensures performance under specified temperature and voltage conditions
Compatibility
Compatible with standard TSSOP mounting and design systems
Application Areas
Data communication equipment
Signal translation
Mobile phones
Personal electronic devices
Product Lifecycle
Status: Active
No current indication of discontinuation
Future upgrades or replacements are likely available due to active status
Several Key Reasons to Choose This Product
Supports broad logic voltage levels suitable for interfacing different systems
High-reliability and robust operation from -40°C to 85°C
Suitable for high-density mounting due to compact TSSOP package
Multi-voltage operation facilitates design flexibility
Ideal for high-speed signal transmission and data processing applications
