Manufacturer Part Number

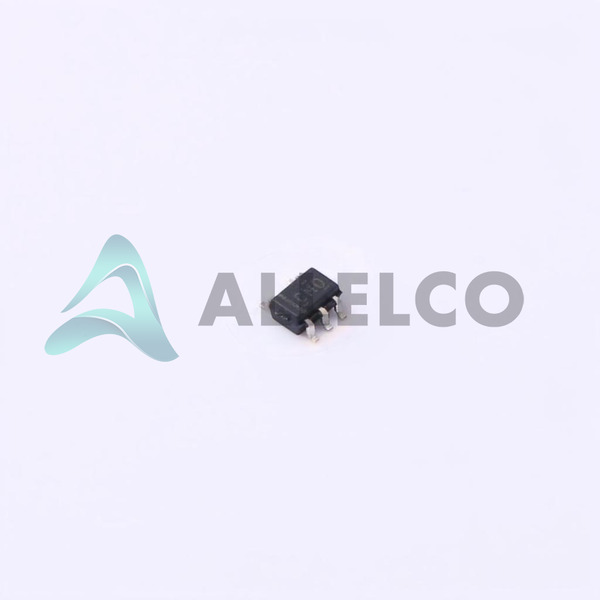

CLVC1G125IDCKREP
Manufacturer
Texas Instruments
Introduction
The CLVC1G125IDCKREP is a single-bit non-inverting buffer with a 3-state output from Texas Instruments' 74LVC series, providing a logic interface between different voltage domains.
Product Features and Performance
Single-bit non-inverting buffer logic gate
3-state output for bus-oriented applications
Capable of sourcing or sinking 32mA of current
Wide supply voltage range from 1.65V to 5.5V
Low power consumption technology
High noise immunity design
Suitable for down translation to VCC
Product Advantages
Flexible voltage compatibility for use in varied logic environments
Smooth interfacing capability with significant current driving capacity
3-state output to prevent bus conflict
Compatibility with industry-standard 5-TSSOP, SC-70-5, SOT-353 packages
Key Technical Parameters
Logic Type: Buffer, Non-Inverting
Number of Elements: 1
Number of Bits per Element: 1
Current Output High, Low: 32mA, 32mA
Voltage Supply: 1.65V ~ 5.5V
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Quality and Safety Features
Operates reliably in extended temperature ranges
Conforms to international standards
Robust ESD protection
Compatibility
Compatible with various logic families due to its wide voltage range
Interchangeable with other devices in 74LVC series for system design flexibility
Application Areas
Consumer Electronics
Computing Systems
Signal Distribution
Data Communication
Embedded Systems
Product Lifecycle
Product Status: Active
Not nearing discontinuation
Upgrades or replacements may be available in the Texas Instruments 74LVC portfolio
Several Key Reasons to Choose This Product
Manufactured by Texas Instruments, a reputable semiconductor company
High-current output capability for driving loads or bus lines
Versatility across multiple logic-level applications due to wide voltage range
Low power consumption for energy-efficient applications
Wide operating temperature range fits demanding environments
Standard packaging options for compatibility with existing PCB designs
Active lifecycle status ensures long-term supply and support
