Manufacturer Part Number
SN74LVC2G86YZPR
Manufacturer
Texas Instruments
Introduction
Dual 2-input exclusive-OR gate integrated circuit from the 74LVC series.
Product Features and Performance
Logic family: 74LVC
Logic function: XOR (Exclusive OR)
Number of Circuits: 2
Number of Inputs per Gate: 2
Low power consumption
High-speed operation
Product Advantages
Wide supply voltage range: 1.65V to 5.5V
Compatibility with mixed-voltage systems
5V tolerant inputs
Schmitt trigger action at all inputs
Key Technical Parameters
Supply Voltage: 1.65V to 5.5V
Quiescent Current (Max): 10 µA
Output Current High, Low: 32mA, 32mA
Input Logic Level - Low: 0.58V to 1.65V
Input Logic Level - High: 1.07V to 3.85V
Maximum Propagation Delay: 3.6ns at 5V, 50pF
Operating Temperature Range: -40°C to 85°C
Quality and Safety Features
Operating temperature designed for commercial and industrial applications
Robust construction for surface mount technology
Compatibility
Suitable for surface mount technologies (SMT)

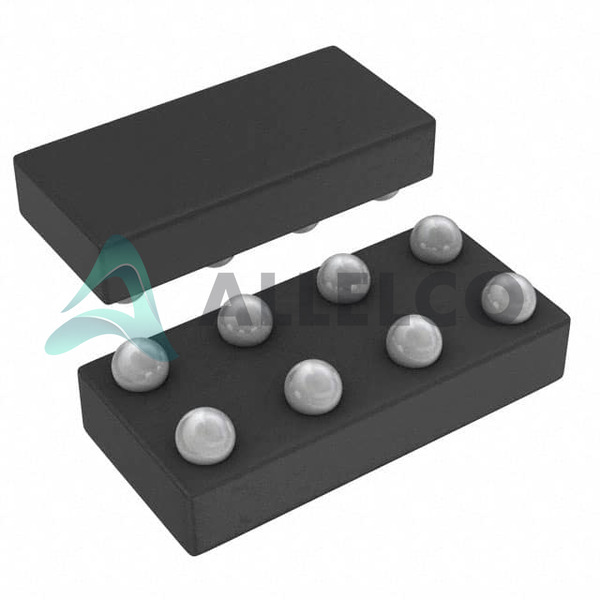

8-DSBGA Device Package compatible with standard SMT assembly processes
Application Areas
Telecommunications
Computers and Computer Peripherals
Data processing
Industrial control systems
Product Lifecycle
The status is active
Not indicated as nearing discontinuation
Replacements or upgrades should be sought in the 74LVC family if necessary
Several Key Reasons to Choose This Product
Wide operating voltage range suitable for battery-operated and low-voltage applications
Low power consumption ideal for portable electronics
High output current capable of driving loads directly
Robust performance in industrial temperature ranges
Flexible usage in a variety of logic functions and complex circuits
Easy to integrate into existing designs due to standard packaging and industry-compliance
