Manufacturer Part Number

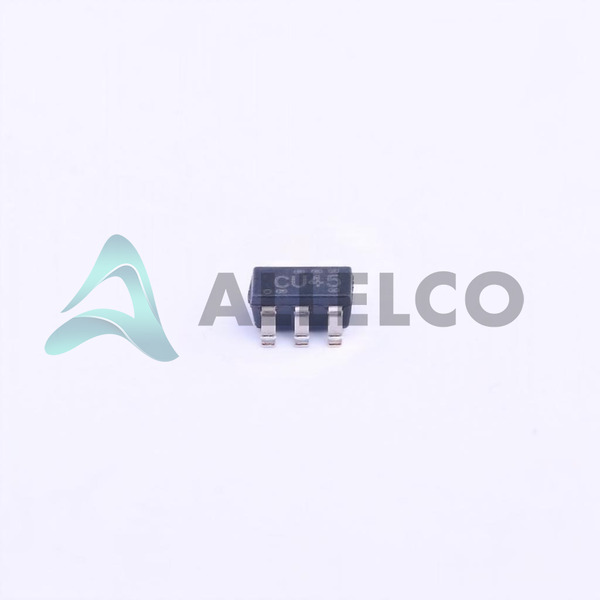

SN74LVC2GU04DBVR
Manufacturer
Texas Instruments
Introduction
SN74LVC2GU04DBVR is an integrated circuit from Texas Instruments, categorized under Logic Gates and Inverters, specifically designed for high-speed signal processing tasks.
Product Features and Performance
Dual inverter gate
Surface mount package SOT-23-6
Low quiescent current of 10 µA
High output current capacity of 32mA for both high and low states
Fast propagation delay of 3.5ns at 5V, 50pF load
Supports a wide supply voltage range of 1.65V to 5.5V
Operable within input logic levels of 0.41V to 4.13V
Product Advantages
High output drive with low voltage
Compact size due to the SOT-23-6 package
Wide operating temperature range from -40°C to 125°C supports use in extreme conditions
Key Technical Parameters
Logic Type: Inverter
Number of Circuits: 2
Number of Inputs: 2
Voltage Supply: 1.65V ~ 5.5V
Quiescent Current (Max): 10 µA
Output Current High, Low: 32mA, 32mA
Max Propagation Delay @ V, Max CL: 3.5ns @ 5V, 50pF
Input Logic Level Low: 0.41V ~ 1.38V
Input Logic Level High: 1.24V ~ 4.13V
Operating Temperature: -40°C ~ 125°C
Quality and Safety Features
Robust temperature range ensuring stability under environmental stress
High reliability in signal integrity
Compatibility
Compatible with various higher and lower voltage systems due to wide input logic level range
Application Areas
Consumer Electronics
Telecommunications
Computing devices
Industrial equipment
Product Lifecycle
Currently active product
Not nearing discontinuation
Availability of replacements or upgrades not specified but generally supported by ongoing manufacturer developments
Several Key Reasons to Choose This Product
Efficient for high-speed computing needs due to low propagation delay
Flexible in various application environments given the wide operating temperature and voltage range
High reliability and efficiency in power management with low current requirements and high current drive capability
Small footprint ideal for space-constrained applications due to SOT-23-6 packaging
Manufactured by Texas Instruments, a leader in semiconductor design and production.
