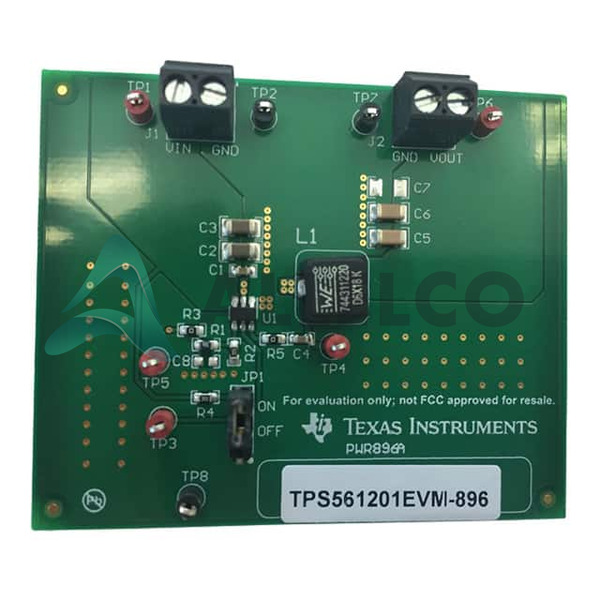

TPS561201EVM-896 - Texas Instruments

Manufacturer Part Number: TPS561201EVM-896

Manufacturer: Texas Instruments

Allelco Part Number: 98D-TPS561201EVM-896

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: EVAIL MOD

Package: Box

Data sheet: 1.TPS561201EVM-89.pdf ...

Datasheets
TPS561201EVM-896 User Guide.pdf

HTML Datasheet
TPS561201, TPS561208 Datasheet.pdf

~~Compare~~

Our certification

In stock: 49123

Unit Price: $58.80
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$58.80	$58.80

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

TPS561201EVM-896 Tech Specifications
Texas Instruments - TPS561201EVM-896 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS561201EVM-896

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output	1.05V
Voltage - Input	4.5V ~ 17V
Utilized IC / Part	TPS561201
Supplied Contents	Board(s)
Series	D-CAP2™, SWIFT™
Regulator Topology	Buck

Product Attribute	Attribute Value
Package	Box
Outputs and Type	1, Non-Isolated
Main Purpose	DC/DC, Step Down
Frequency - Switching	580kHz
Current - Output	1A
Board Type	Fully Populated
Base Product Number	TPS561201

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	Not applicable
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS561201EVM-896

Product Attribute
Part Number	TPS561208EVM-896	TPS56121EVM-601	TPS56100EVM-128	TPS56100EVM-133
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Regulator Topology	-	-	-	-
Current - Output	-	-	-	-
Supplied Contents	-	-	-	-
Utilized IC / Part	-	-	-	-
Outputs and Type	-	-	-	-
Voltage - Input	-	-	-	-
Main Purpose	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Board Type	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Voltage - Output	-	-	-	-
Frequency - Switching	-	-	-	-
Series	-	-	-	-

TPS561201EVM-896 Datasheet PDF

Download TPS561201EVM-896 pdf datasheets and Texas Instruments documentation for TPS561201EVM-896 - Texas Instruments.

Datasheets: TPS561201EVM-896 User Guide.pdf
HTML Datasheet: TPS561201, TPS561208 Datasheet.pdf
