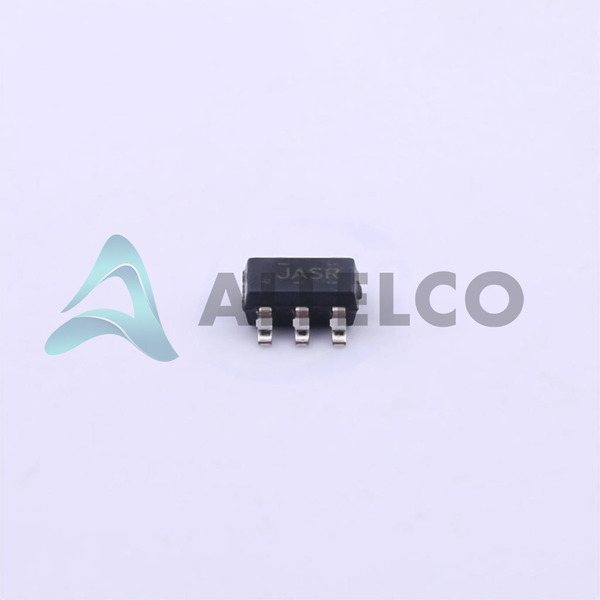

TS5A3166DBVR - Texas Instruments

Name: Texas Instruments TS5A3166DBVR
Brand: Texas Instruments
SKU: TS5A3166DBVR
Price: 0.088 USD
Availability: InStock
Rating: 5 (5 reviews)

Manufacturer Part Number: TS5A3166DBVR

Manufacturer: Texas Instruments

Allelco Part Number: 32D-TS5A3166DBVR

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC SW SPST-NOX1 900MOHM SOT23-5

Package: SOT-23-5

Data sheet: 1.TS5A3166DBVR.pdf ...

PCN Assembly/Origin
Additional Assembly sites 21/Sep/2021.pdf

PCN Design/Specification
Copper Wire Base 31/Mar/2014.pdf Copper Wire Revision B 01/Sep/2015.pdf

HTML Datasheet
TS5A3166.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 161560

Unit Price: $0.175
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
5+	$0.175	$0.88
50+	$0.141	$7.05
150+	$0.126	$18.90
500+	$0.108	$54.00
3000+	$0.093	$279.00
6000+	$0.088	$528.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

TS5A3166DBVR Tech Specifications
Texas Instruments - TS5A3166DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TS5A3166DBVR

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	7ns, 11.5ns
Switch Circuit	SPST - NO
Supplier Device Package	SOT-23-5
Series	-
Package / Case	SC-74A, SOT-753
Package	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C (TA)
On-State Resistance (Max)	900mOhm

Product Attribute	Attribute Value
Number of Circuits	1
Multiplexer/Demultiplexer Circuit	1:1
Mounting Type	Surface Mount
Current - Leakage (IS(off)) (Max)	20nA
Crosstalk	-
Charge Injection	1pC
Channel-to-Channel Matching (ΔRon)	-
Channel Capacitance (CS(off), CD(off))	19pF, 18pF
Base Product Number	TS5A3166
-3db Bandwidth	200MHz

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

TS5A3166DBVR

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC) product

Analog switch, multiplexer, and demultiplexer

Product Features and Performance

High-speed operation with up to 200MHz bandwidth

Low on-state resistance of 900mOhm

Low charge injection of 1pC

1:01 multiplexer/demultiplexer circuit

SPST-NO switch circuit

Product Advantages

Wide operating voltage range from 1.65V to 5.5V

Fast switching time of 7ns (on) and 11.5ns (off)

Low channel capacitance of 19pF (off) and 18pF (off)

Compact SOT-23-5 package

Key Technical Parameters

Operating temperature range: -40°C to 85°C

Leakage current (IS(off)): 20nA (max)

Quality and Safety Features

RoHS3 compliant

Compatibility

Surface mount package (SOT-23-5)

Application Areas

Analog signal switching and multiplexing/demultiplexing

Instrumentation and test equipment

Consumer electronics

Industrial control systems

Product Lifecycle

Currently available product

No information on discontinuation or replacement

Key Reasons to Choose This Product

High-speed, low-power analog switching capabilities

Compact and versatile SOT-23-5 package

Wide operating voltage range and temperature tolerance

Low charge injection and on-state resistance

Suitable for a variety of analog signal switching applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TS5A3166DBVR
