HomeProductsIntegrated Circuits (ICs)Interface - Analog Switches, Multiplexers, DemultiplexersTS5A3167DBVR

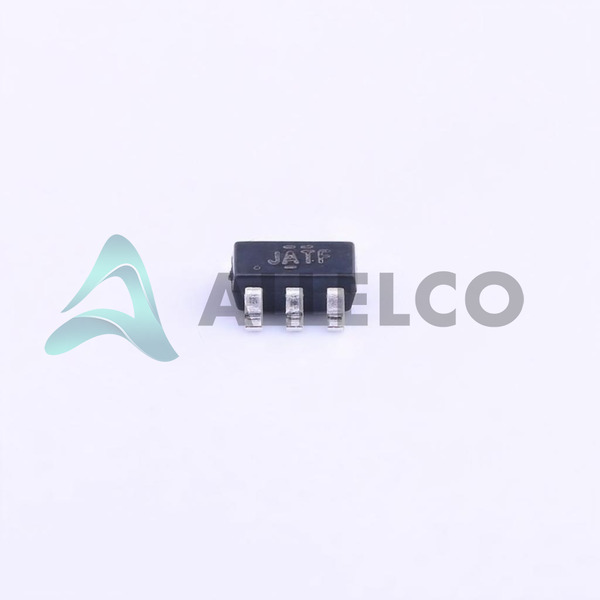

TS5A3167DBVR Image
TS5A3167DBVR Image - 1TS5A3167DBVR Image - 2TS5A3167DBVR Image - 3
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TS5A3167DBVR - Texas Instruments

Manufacturer Part Number
TS5A3167DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TS5A3167DBVR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC SW SPST-NCX1 900MOHM SOT23-5
Package
SOT-23-5
Data sheet
1.TS5A3167DBVR.pdf ...

HTML Datasheet

TS5A3167.pdf

PCN Design/Specification

TS5A3167 DS Chg 17/Sep/2018.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 142930
  • Unit Price: $0.191
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.191 $0.96
50+ $0.153 $7.65
150+ $0.137 $20.55
500+ $0.118 $59.00
3000+ $0.109 $327.00
6000+ $0.103 $618.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TS5A3167DBVR Tech Specifications
Texas Instruments - TS5A3167DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TS5A3167DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Single (V+) 1.65V ~ 5.5V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 7.5ns, 11ns
Switch Circuit SPST - NC
Supplier Device Package SOT-23-5
Series -
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C (TA)
On-State Resistance (Max) 900mOhm
Product Attribute Attribute Value
Number of Circuits 1
Multiplexer/Demultiplexer Circuit 1:1
Mounting Type Surface Mount
Current - Leakage (IS(off)) (Max) 20nA
Crosstalk -
Charge Injection 6pC
Channel-to-Channel Matching (ΔRon) -
Channel Capacitance (CS(off), CD(off)) 19pF, 18pF
Base Product Number TS5A3167
-3db Bandwidth 150MHz

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TS5A3167DBVR

Manufacturer

Texas Instruments

Introduction

The TS5A3167DBVR is a single-pole single-throw (SPST) normally closed analog switch from Texas Instruments, utilized in various interface applications.

Product Features and Performance

Single-channel analog switch

SPST - NC Configuration

On-State Resistance Maximum: 900mOhm

Switch Time Maximum: Ton (7.5ns), Toff (11ns)

-3dB Bandwidth: 150MHz

Charge Injection: 6pC

Channel Capacitance: CS(off) 19pF, CD(off) 18pF

Current - Leakage Maximum: 20nA

Operating Temperature Range: -40°C to 85°C

Product Advantages

Low on-state resistance enhances signal integrity

Fast switching speeds suitable for high-frequency applications

Low charge injection and channel capacitance maintain signal fidelity

Wide operating temperature range ensures reliability across various environments

Key Technical Parameters

Voltage - Supply, Single (V+): 1.65V to 5.5V

Operating Temperature: -40°C to 85°C

Channel Capacitance: CS(off) 19pF, CD(off) 18pF

On-State Resistance: 900mOhm Max

Quality and Safety Features

Built to ensure minimal signal distortion and leakage

Robust construction suitable for harsh temperature conditions

Compatibility

Compatible with various analog signal applications due to versatile supply voltage range and fast switching characteristics.

Application Areas

Telecommunications

Data acquisition systems

Portable electronics

Consumer electronics

Product Lifecycle

Status: Active

Not nearing discontinuation, with ongoing support and availability

Several Key Reasons to Choose This Product

Ideal for high-performance applications requiring minimal signal distortion

Supports a wide range of supply voltages for diverse application needs

Quick switching time beneficial in critical timing applications

Low leakage current and on-state resistance ensure high efficiency and lower power consumption

Robust and reliable performance across a wide range of operating temperatures

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TS5A3167DBVR

Product Attribute TS5A3167DBVRG4 TS5A3167DBVRE4 TS5A3166DBVRG4 TS5A3166DBVR
Part Number TS5A3167DBVRG4 TS5A3167DBVRE4 TS5A3166DBVRG4 TS5A3166DBVR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Supply, Single (V+) - - - -
Multiplexer/Demultiplexer Circuit - - - -
Current - Leakage (IS(off)) (Max) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Channel Capacitance (CS(off), CD(off)) - - - -
Series - - - -
Charge Injection - - - -
Voltage - Supply, Dual (V±) - - - -
-3db Bandwidth - - - -
Number of Circuits - - - -
Crosstalk - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
On-State Resistance (Max) - - - -
Switch Time (Ton, Toff) (Max) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Channel-to-Channel Matching (ΔRon) - - - -
Switch Circuit - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package - Tape & Reel (TR) Tube Tape & Reel (TR)

TS5A3167DBVR Datasheet PDF

Download TS5A3167DBVR pdf datasheets and Texas Instruments documentation for TS5A3167DBVR - Texas Instruments.

HTML Datasheet
TS5A3167.pdf
PCN Assembly/Origin
Qualification Copper Wire Base 22/Jan/2014.pdf
PCN Design/Specification
TS5A3167 DS Chg 17/Sep/2018.pdf
