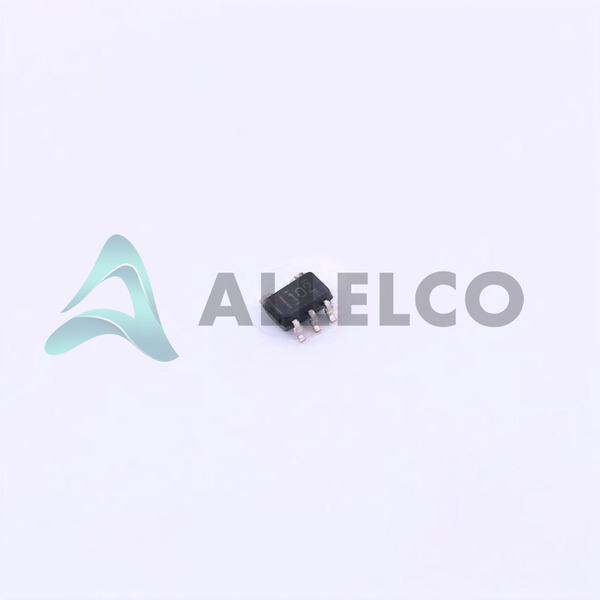

TMUX1102DCKR Image
TMUX1102DCKR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TMUX1102DCKR - Texas Instruments

Manufacturer Part Number
TMUX1102DCKR
Manufacturer
Texas Instruments
Allelco Part Number
41D-TMUX1102DCKR
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
3,890 pcs available, New & Original
Parts Description
SC-70-5
Data sheet
-
Category
Integrated Circuits (ICs) > Specialized ICs
RoHs Status
Compare
Our certification
In stock: 3890
  • Unit Price: $1.093
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.093 $1.09
10+ $0.963 $9.63
30+ $0.871 $26.13
100+ $0.786 $78.60
500+ $0.748 $374.00
1000+ $0.732 $732.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

TMUX1102DCKR Tech Specifications
Texas Instruments - TMUX1102DCKR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TMUX1102DCKR

Product Attribute Attribute Value
Part Number TMUX1102DCKR
Package SC-70-5
Description SC-70-5
Stock Condition Get 3890 pcs available quantity at Allelco
Payment PayPal / TT / Credit Card / Western Union
Allelco Certifications ESD / ISO 9001 / ISO 13485 / ISO 28000
Product Attribute Attribute Value
Manufacturer Texas Instruments
RoHs Status -
Warranty 100% Perfect Functions
Transport port Hong Kong
Shipping by DHL / FedEx / UPS / TNT / SF Express
RFQ Email info@allelco.com

Parts Introduction

TMUX1102DCKR Image
TMUX1102DCKR (1)

Manufacturer Part Number

TMUX1102DCKR

Manufacturer

Texas Instruments

Introduction

The TMUX1102DCKR is a high-performance, low-power analog switch from Texas Instruments. It features a 1:1 multiplexer/demultiplexer circuit with a single channel, designed for a wide range of applications that require high-speed, low-noise switching.

Product Features and Performance

On-state resistance (max): 4Ω

Channel-to-channel matching (ΔRon): 850mΩ

Voltage supply range: 1.08V to 5.5V

-3dB bandwidth: 300MHz

Charge injection: -1.5pC

Channel capacitance (CS(off), CD(off)): 6pF, 10pF

Leakage current (IS(off)) (max): 80pA

Operating temperature range: -40°C to 125°C

Product Advantages

Excellent RF performance with high bandwidth and low charge injection

Extremely low on-state resistance and channel-to-channel matching for optimal signal integrity

Wide supply voltage range for versatile applications

Small form factor in a 5-pin SC-70-5 package

Key Reasons to Choose This Product

Exceptional high-speed analog switching capabilities

Ideal for applications requiring low-noise, high-performance signal routing

Compact size and low power consumption for space-constrained designs

Proven reliability and long-term performance from a trusted manufacturer

Quality and Safety Features

Robust design for reliable operation in demanding environments

Compliance with industry safety and environmental standards

Compatibility

Surface mount package for easy integration into various circuit boards and assemblies

Application Areas

RF and high-speed signal routing

Test and measurement equipment

Industrial automation and control systems

Portable electronics and mobile devices

Product Lifecycle

The TMUX1102DCKR is an active product, and Texas Instruments continues to manufacture and support this model. There are no direct equivalents or alternative models currently available. For the latest product information and availability, please contact our website's sales team.

Frequently Asked Questions(FAQ)

What are the key electrical characteristics of the TMUX1102DCKR that influence high-speed signal routing in low-voltage applications?
The TMUX1102DCKR offers an on-state resistance of 4 ohms, which is sufficiently low for minimizing voltage drop in most digital and analog signals. Its channel capacitance values—6 pF for CS(off) and 10 pF for CD(off)—are notably compact, helping to preserve signal integrity at frequencies approaching 300 MHz. This combination supports efficient switching without introducing significant distortion or delay in high-speed data paths.
How does the TMUX1102DCKR compare to other single-pole single-throw switches when considering insertion loss and bandwidth?
With a -3dB bandwidth of 300 MHz and an on-resistance of 4 ohms, the TMUX1102DCKR performs competitively against similar SPST switches in terms of insertion loss across its operating frequency range. Devices with lower Ron may offer even better performance above 300 MHz, but the TMUX1102DCKR strikes a balance suitable for many RF and mixed-signal systems where space, power, and cost are constrained.
What supply voltage considerations should be made when integrating the TMUX1102DCKR into a battery-powered system?
The TMUX1102DCKR operates over a wide supply range from 1.08 V to 5.5 V, making it compatible with modern low-voltage microcontrollers and sensor nodes. However, designers must ensure that input signals do not exceed the supply rails by more than the absolute maximum ratings, as this could compromise reliability. In sub-1.8 V systems, leakage current remains minimal at 80 pA, reducing standby power consumption effectively.
Can the TMUX1102DCKR reliably switch analog signals near rail-to-rail without degrading linearity?
Yes, the device’s low Ron and small charge injection (approximately -1.5 pC) help maintain acceptable linearity for analog signals within the specified supply range. For precise analog switching, especially at higher amplitudes, external buffering or level-shifting may still be necessary depending on the application’s dynamic range requirements.
How does channel-to-channel matching affect performance if multiple switches were used in parallel?
While the TMUX1102DCKR contains only one switch, the concept of channel matching becomes relevant in multiplexers with multiple poles. The specified ΔRon of 850 mΩ indicates variation between channels, which can lead to imbalance in gain or attenuation when switching differential signals. For single-switch designs, this parameter has limited impact unless cascading identical devices.
Is the TMUX1102DCKR suitable for use in automotive environments subject to temperature extremes?
Yes, the TMUX1102DCKR is rated for operation from -40°C to 125°C, meeting typical automotive temperature qualifications. This broad thermal range ensures stable switching behavior under harsh conditions, such as those found in engine control units or infotainment systems, without requiring additional thermal management.
What packaging options are available for the TMUX1102DCKR, and how do they affect PCB layout decisions?
The TMUX1102DCKR is offered in SC-70-5 (SOT-353) packaging, commonly used in space-constrained consumer electronics. This compact surface-mount format allows dense routing but requires careful attention to soldering profiles and pad design to avoid defects. The MSL 1 rating permits unlimited shelf life, simplifying inventory handling compared to moisture-sensitive alternatives.
How does crosstalk behave in the TMUX1102DCKR, and what implications does this have for closely routed traces?
Although crosstalk is not explicitly quantified in the datasheet, the low off-leakage current (80 pA) and small parasitic capacitances suggest minimal coupling between channels. When only one switch exists per device, inter-channel crosstalk is inherently reduced. Still, adjacent high-impedance lines on the same board should maintain adequate spacing to prevent unintended capacitive coupling during switching transitions.
What role does charge injection play when using the TMUX1102DCKR in sample-and-hold circuits?
Charge injection of -1.5 pC contributes to transient glitches during switching events in precision analog front-ends. In sample-and-hold architectures, this can introduce errors in captured voltages, particularly at high sampling rates. Mitigation strategies include using correlated double sampling or selecting switches with lower charge injection if tighter accuracy is required.
How does the TMUX1102DCKR support system miniaturization in wearable or IoT devices?
The SC-70-5 package measures approximately 2.1 mm x 1.3 mm, enabling integration into compact form factors. Combined with RoHS3 compliance and REACH unaffected status, the TMUX1102DCKR aligns well with regulatory and sustainability goals. Its ability to operate down to 1.08 V also supports energy-efficient operation critical for battery-limited IoT endpoints.
Should the TMUX1102DCKR be selected over a mechanical relay for frequent switching in industrial automation?
Unlike mechanical relays, the TMUX1102DCKR provides silent, solid-state operation with no contact wear, enabling millions of cycles without degradation. For low-power signal routing in control panels or sensor networks, it offers faster response and immunity to shock/vibration. However, relays remain preferable for high-current or isolation-intensive tasks beyond the TMUX1102DCKR's capabilities.
What precautions apply when driving control inputs to the TMUX1102DCKR from logic levels below its minimum supply?
The control input thresholds scale with V+, so applying logic signals below 1.08 V while powered at higher voltages may result in undefined switching states. To ensure reliable operation, either power the device at the same level as the driving logic or use level-shifters to guarantee input voltages meet valid HIGH/LOW thresholds across all supply ranges.
