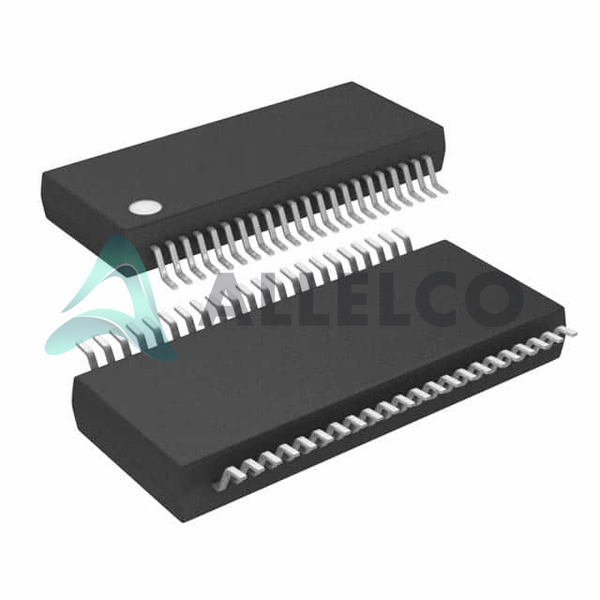

ATMEGA16HVB-8X3 Image
ATMEGA16HVB-8X3 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ATMEGA16HVB-8X3 - Microchip Technology

Manufacturer Part Number
ATMEGA16HVB-8X3
Manufacturer
Microchip Technology
Allelco Part Number
32D-ATMEGA16HVB-8X3
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
14,660 pcs available, New & Original
Parts Description
IC MCU 8BIT 16KB FLASH 44TSSOP
Package
44-TSSOP
Data sheet
ATMEGA16HVB-8X3.pdf

PCN Obsolescence/ EOL

Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 14660

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

ATMEGA16HVB-8X3 Tech Specifications
Microchip Technology - ATMEGA16HVB-8X3 technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - ATMEGA16HVB-8X3

Product Attribute Attribute Value
Manufacturer Microchip Technology
Voltage - Supply (Vcc/Vdd) 4V ~ 25V
Supplier Device Package 44-TSSOP
Speed 8MHz
Series AVR® ATmega
RAM Size 1K x 8
Program Memory Type FLASH
Program Memory Size 16KB (8K x 16)
Peripherals POR, WDT
Package / Case 44-TFSOP (0.173', 4.40mm Width)
Package Tube
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 17
Mounting Type Surface Mount
EEPROM Size 512 x 8
Data Converters A/D 7x12b
Core Size 8-Bit
Core Processor AVR
Connectivity I²C, SPI
Base Product Number ATMEGA16

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
