Manufacturer Part Number
ESD5V0D5-TP
Manufacturer
micro-commercial-components
Introduction
The ESD5V0D5-TP is a high-performance unidirectional transient voltage suppressor (TVS) diode designed for protection against electrostatic discharge (ESD) and other transient voltage spikes in various electronic applications. It offers reliable and robust protection, ensuring the safety and reliability of sensitive electronic components.
Product Features and Performance
Unidirectional design with a single channel for protecting against transient voltage events
Reverse standoff voltage of 5V (typical) and breakdown voltage of 6.2V (minimum)
Clamping voltage of 18.6V (maximum) at a peak pulse current of 11.6A (8/20μs)
Peak pulse power handling capability of 174W
Operating temperature range of -55°C to 150°C (junction temperature)

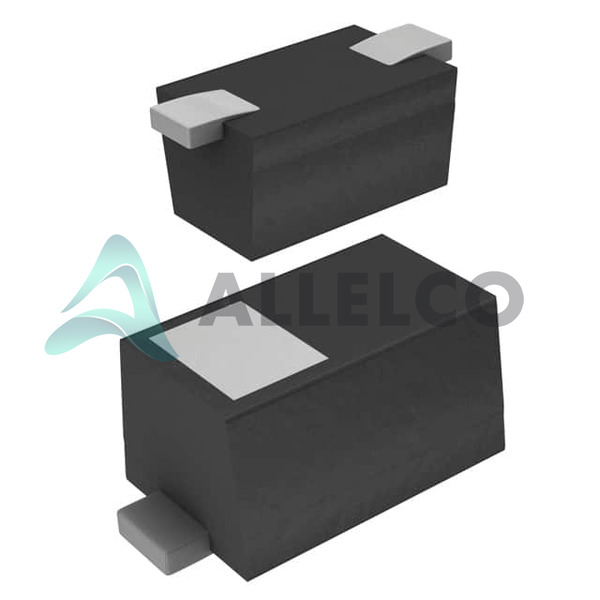

Small surface mount package (SOD-523) for compact design integration
Product Advantages
Robust protection against ESD and transient voltage spikes
Compact and space-efficient surface mount package
Wide operating temperature range for reliable performance in diverse environments
High pulse power handling capability for enhanced circuit protection
Key Reasons to Choose This Product
Reliable and effective protection for sensitive electronic components
Compact design for easy integration into space-constrained applications
Broad operating temperature range for versatile usage
High pulse power handling ability for superior transient voltage suppression
Quality and Safety Features
Manufactured to high-quality standards for reliable performance
Compliant with relevant safety and regulatory requirements
Compatibility
The ESD5V0D5-TP is compatible with a wide range of electronic applications and devices that require protection against electrostatic discharge and transient voltage spikes.
Application Areas
Consumer electronics
Industrial automation and control systems
Telecommunications equipment
Automotive electronics
Power supplies and power management circuits
Product Lifecycle
The ESD5V0D5-TP is an active product, and there are no known plans for discontinuation. While there may be equivalent or alternative models available, it is recommended to contact our website's sales team for the most up-to-date information on product availability and potential alternatives.
