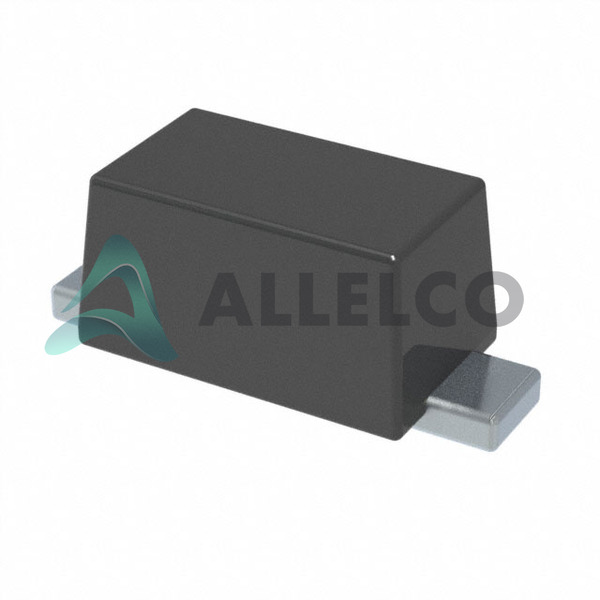

ESD5V0D7-TP Image
ESD5V0D7-TP Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ESD5V0D7-TP - Micro Commercial Co

Manufacturer Part Number
ESD5V0D7-TP
Manufacturer
Micro Commercial Components (MCC)
Allelco Part Number
32D-ESD5V0D7-TP
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
TVS DIODE 5VWM 13.3VC SOD723
Package
SOD-723
Data sheet
1.ESD5V0D7-TP.pdf ...

PCN Obsolescence/ EOL

Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 63990
  • Unit Price: $0.028
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
10+ $0.028 $0.28
100+ $0.025 $2.50
300+ $0.023 $6.90
1000+ $0.022 $22.00
5000+ $0.021 $105.00
8000+ $0.02 $160.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

ESD5V0D7-TP Tech Specifications
Micro Commercial Co - ESD5V0D7-TP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co - ESD5V0D7-TP

Product Attribute Attribute Value
Manufacturer Micro Commercial Components (MCC)
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Clamping (Max) @ Ipp 13.3V
Voltage - Breakdown (Min) 6.2V
Unidirectional Channels 1
Type Zener
Supplier Device Package SOD-723
Series -
Power Line Protection No
Product Attribute Attribute Value
Power - Peak Pulse 117W
Package / Case SOD-723
Package Tape & Reel (TR)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Current - Peak Pulse (10/1000µs) 8.8A (8/20µs)
Capacitance @ Frequency 65pF @ 1MHz
Base Product Number ESD5V0
Applications General Purpose

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080

Parts Introduction

Manufacturer Part Number

ESD5V0D7-TP

Manufacturer

micro-commercial-components

Introduction

The ESD5V0D7-TP is a Transient Voltage Suppressor (TVS) diode that provides protection against electrostatic discharge (ESD) and other transient voltage spikes in electronic circuits. It is designed to safeguard sensitive components and ensure the reliable operation of various electronic devices.

Product Features and Performance

Unidirectional channel design with 1 channel

Reverse standoff voltage (typ.): 5V

Breakdown voltage (min.): 6.2V

Clamping voltage (max. @ Ipp): 13.3V

Peak pulse current (10/1000μs): 8.8A (8/20μs)

Peak pulse power: 117W

Capacitance @ 1MHz: 65pF

Operating temperature range: -55°C to 150°C (TJ)

Product Advantages

Robust protection against ESD and transient voltage spikes

Compact surface mount package (SOD-723)

Wide operating temperature range

High peak pulse current and power handling capability

Key Reasons to Choose This Product

Reliable protection for sensitive electronic components

Compact and space-saving design for efficient circuit integration

Suitable for a wide range of general-purpose applications

Excellent thermal performance and stability

Quality and Safety Features

Complies with relevant safety and quality standards

Undergoes rigorous testing and quality control processes

Compatibility

The ESD5V0D7-TP is compatible with a variety of electronic devices and circuits that require protection against electrostatic discharge and transient voltage spikes.

Application Areas

General-purpose electronic devices

Automotive electronics

Industrial control systems

Consumer electronics

Telecommunications equipment

Product Lifecycle

The ESD5V0D7-TP is currently in the obsolete phase. Customers are advised to contact our website's sales team for information on equivalent or alternative models that may be available.
