Manufacturer Part Number
RS2103XH
Manufacturer
jiangsu-runic
Introduction
The RS2103XH is a high-performance SPDT analog switch with a 2:1 multiplexer/demultiplexer circuit. It offers low on-state resistance, fast switching speed, and wide bandwidth operation, making it suitable for a variety of analog signal routing and switching applications.
Product Features and Performance
SPDT switch circuit with 2:1 multiplexer/demultiplexer
Low on-state resistance of 1Ω (max)
Channel-to-channel matching of 40mΩ (typ)
Wide supply voltage range of 1.8V to 5.5V
Fast switching speed of 50ns (typ) for both on and off
Wide -3dB bandwidth of 30MHz
Low channel capacitance of 80pF
Low leakage current of 1μA (max)
Product Advantages
Excellent signal integrity with low on-state resistance and channel-to-channel matching
Versatile analog signal routing and switching capabilities
Wide operating voltage and temperature range

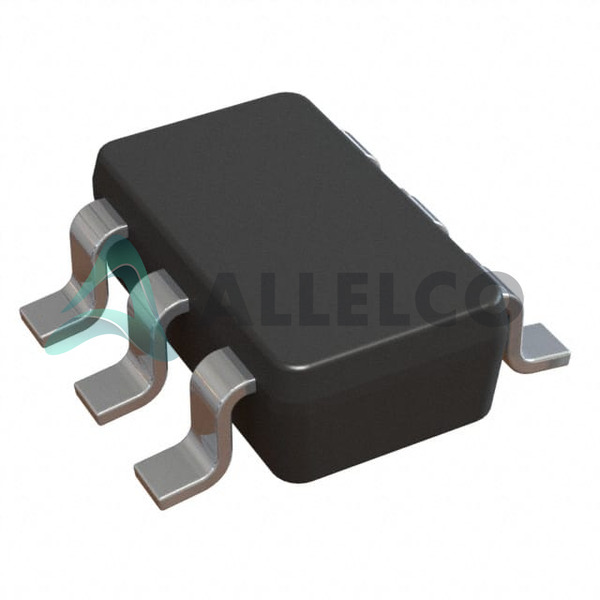

Small surface-mount package (SOT-23-6)
Key Reasons to Choose This Product
High-performance analog switching solution for critical applications
Reliable and robust design for long-term reliability
Cost-effective alternative to discrete switching components
Easy integration into various analog circuit designs
Quality and Safety Features
Rigorous quality control and testing
Compliance with industry safety and environmental standards
Compatibility
The RS2103XH is compatible with a wide range of analog circuits and systems, including:
Audio and video signal processing
Industrial automation and control systems
Test and measurement equipment
Instrumentation and medical devices
Application Areas
Analog signal routing and switching
Audio and video signal processing
Industrial control and automation
Test and measurement equipment
Instrumentation and medical devices
Product Lifecycle
The RS2103XH is an active product, and there are no known equivalent or alternative models available at this time. If you have any questions or need additional information, please contact our sales team through our website.
