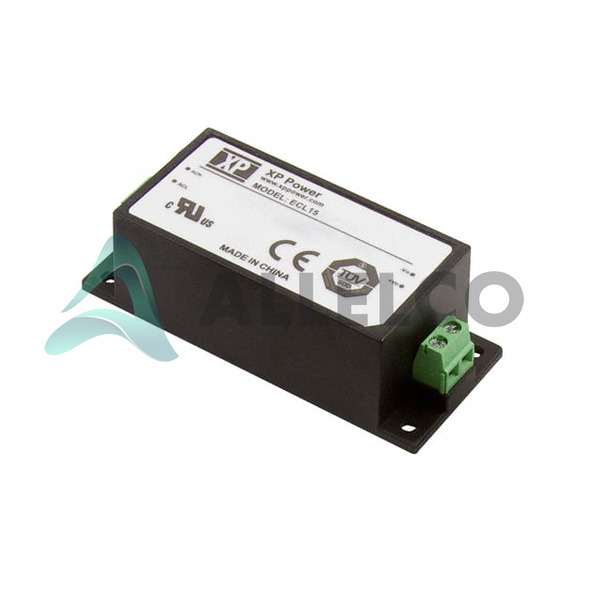

ECL15UD02-S - XP Power

Manufacturer Part Number: ECL15UD02-S

Manufacturer: XP Power

Allelco Part Number: 98D-ECL15UD02-S

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: AC/DC CONVERTER +/-15V 15W

Package: Box

Data sheet: 1.ECL15UD02-S.pdf ...

Datasheets
ECL Series, 5-30W.pdf

Other Related Documents
ECL Series CB Report.pdf ECL Series TUV Certificate.pdf

Environmental Information
Declaration of Conformity ECL15_Multi Series.pdf RoHS Statement.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 44399

Unit Price: $86.44
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$86.44	$86.44
200+	$34.49	$6,898.00
500+	$33.34	$16,670.00
1000+	$32.77	$32,770.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

ECL15UD02-S Tech Specifications
XP Power - ECL15UD02-S technical specifications, attributes, parameters and parts with similar specifications to XP Power - ECL15UD02-S

Product Attribute	Attribute Value
Manufacturer	XP Power
Voltage - Output 6	-
Voltage - Output 4	-
Voltage - Output 3	-
Voltage - Output 2	-15V
Voltage - Output 1	15V
Voltage - Isolation	3 kV
Voltage - Input	85 ~ 264 VAC
Type	Enclosed
Standard Number	62368-1
Size / Dimension	3.30" L x 1.36" W x 1.04" H (84.0mm x 34.5mm x 26.4mm)
Series	ECL (15W)
Power (Watts)	15W

Product Attribute	Attribute Value
Package	Box
Operating Temperature	-20°C ~ 70°C (With Derating)
Number of Outputs	2
Mounting Type	Chassis Mount
Minimum Load Required	Yes
Features	Adjustable Output, DC Input Capable, Universal Input
Efficiency	82%
Current - Output 2	500 mA
Current - Output 1	500 mA
Base Product Number	ECL15
Approval Agency	-
Applications	ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.6001

Parts with Similar Specifications

The three parts on the right have similar specifications to XP Power ECL15UD02-S

Product Attribute
Part Number	ECL15UD01-S	ECL15UD03-S	ECL15UD02-T	ECL15US03-S
Manufacturer	XP Power	XP Power	XP Power	XP Power
Current - Output 2	-	-	-	-
Voltage - Output 2	-	-	-	-
Minimum Load Required	-	-	-	-
Applications	-	-	-	-
Voltage - Isolation	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Voltage - Output 3	-	-	-	-
Series	-	-	-	-
Power (Watts)	-	-	-	-
Voltage - Output 1	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Features	-	-	-	Simultaneous Sampling
Voltage - Output 4	-	-	-	-
Size / Dimension	-	-	-	-
Type	-	-	-	-
Efficiency	-	-	-	-
Approval Agency	-	-	-	-
Voltage - Input	-	-	-	-
Current - Output 1	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Voltage - Output 6	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Standard Number	-	-	-	-
Number of Outputs	-	-	-	-

ECL15UD02-S Datasheet PDF

Download ECL15UD02-S pdf datasheets and XP Power documentation for ECL15UD02-S - XP Power.

Datasheets: ECL Series, 5-30W.pdf
Other Related Documents: ECL Series CB Report.pdf ECL Series TUV Certificate.pdf
Environmental Information: Declaration of Conformity ECL15_Multi Series.pdf RoHS Statement.pdf
