Specifications

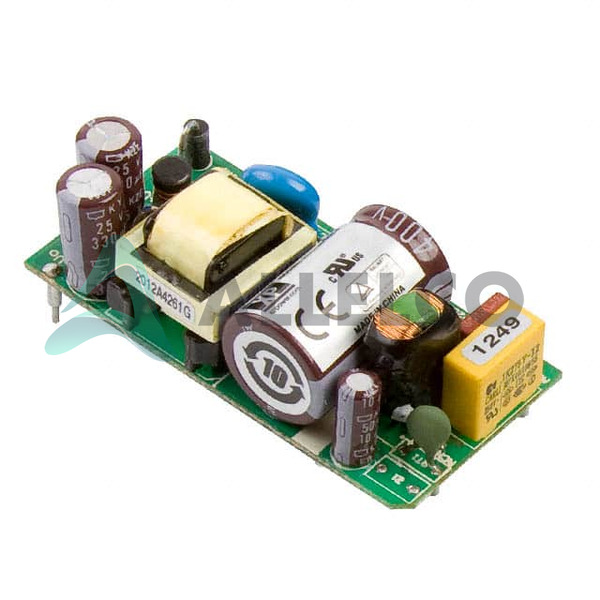

ECL15US03-P Tech Specifications
XP Power - ECL15US03-P technical specifications, attributes, parameters and parts with similar specifications to XP Power - ECL15US03-P
| Product Attribute |
Attribute Value
| |
| Manufacturer |
XP Power |
|
| Weight |
0.077 lb (34.93 g) |
|
| Voltage - Output 4 |
- |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
- |
|
| Voltage - Output 1 |
3.3V |
|
| Voltage - Input |
85 ~ 264 VAC |
|
| Type |
Open Frame |
|
| Standard Number |
62368-1 |
|
| Size / Dimension |
2.44' L x 1.21' W x 0.96' H (62.0mm x 30.7mm x 24.4mm) |
|
| Series |
ECL (15W) |
|
| Power (Watts) |
10 W |
|
| Package / Case |
4-DIP Module |
|
| Product Attribute |
Attribute Value
| |
| Package |
Box |
|
| Operating Temperature |
-20°C ~ 70°C (With Derating) |
|
| Number of Outputs |
1 |
|
| Mounting Type |
Through Hole |
|
| Load Regulation |
±1% |
|
| Line Regulation |
±0.5% |
|
| Features |
Universal Input |
|
| Efficiency |
75% |
|
| Current - Output (Max) |
3A |
|
| Base Product Number |
ECL15US03 |
|
| Approval Agency |
CSA, cUL, EN, IEC, UL |
|
| Applications |
ITE (Commercial) |
|
