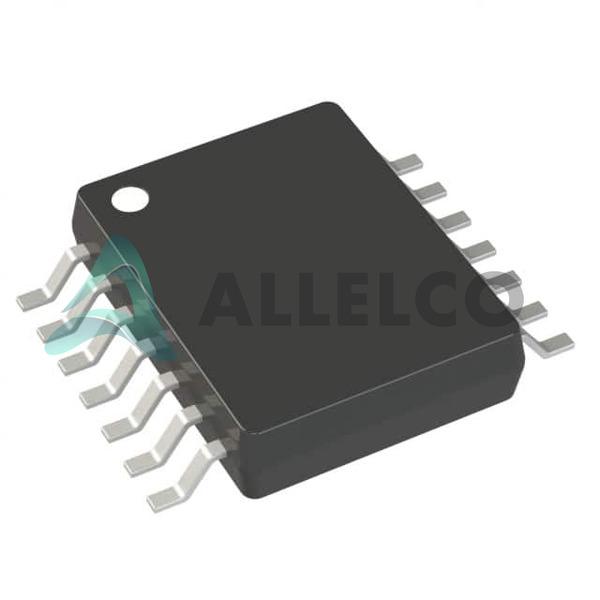

AD8609ARUZ Image
AD8609ARUZ Image - 1AD8609ARUZ Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

AD8609ARUZ - Analog Devices Inc.

Manufacturer Part Number
AD8609ARUZ
Manufacturer
Analog Devices, Inc.
Allelco Part Number
32D-AD8609ARUZ
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
9,548 pcs available, New & Original
Parts Description
IC CMOS 4 CIRCUIT 14TSSOP
Package
14-TSSOP
Data sheet
AD8609ARUZ.pdf

Datasheets

AD8603,07,09.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 9548
  • Unit Price: $3.896
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $3.896 $3.90
10+ $3.435 $34.35
30+ $3.154 $94.62
96+ $2.919 $280.22
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

AD8609ARUZ Tech Specifications
Analog Devices Inc. - AD8609ARUZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. - AD8609ARUZ

Product Attribute Attribute Value
Manufacturer Analog Devices, Inc.
Voltage - Supply Span (Min) 1.8 V
Voltage - Supply Span (Max) 5 V
Voltage - Input Offset 12 µV
Supplier Device Package 14-TSSOP
Slew Rate 0.1V/µs
Series -
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Package Tube
Output Type Rail-to-Rail
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C
Number of Circuits 4
Mounting Type Surface Mount
Gain Bandwidth Product 400 kHz
Current - Supply 40µA (x4 Channels)
Current - Output / Channel 70 mA
Current - Input Bias 0.2 pA
Base Product Number AD8609
Amplifier Type CMOS

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

AD8609ARUZ Image

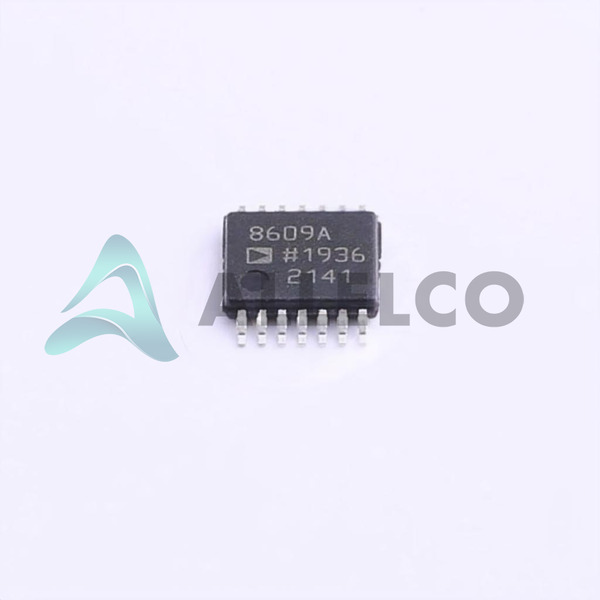

AD8609ARUZ (1)

Manufacturer Part Number

AD8609ARUZ

Manufacturer

Analog Devices, Inc.

Introduction

High-performance, quad CMOS operational amplifier

Designed for a wide range of applications, including instrumentation, measurement, control, and data acquisition systems

Product Features and Performance

Quad CMOS operational amplifier

Rail-to-rail input and output

Low offset voltage of 12 μV

Low input bias current of 0.2 pA

High gain bandwidth of 400 kHz

Wide supply voltage range of 1.8 V to 5 V

Low power consumption of 40 μA per amplifier

Slew rate of 0.1 V/μs

Product Advantages

Excellent performance in high-impedance, low-power applications

Robust CMOS design provides high reliability and stability

Versatile for a wide range of analog circuit designs

AD8609ARUZ Image
AD8609ARUZ (2)

Key Technical Parameters

Supply voltage range: 1.8 V to 5 V

Input offset voltage: 12 μV

Input bias current: 0.2 pA

Gain bandwidth product: 400 kHz

Slew rate: 0.1 V/μs

Number of amplifiers: 4

Output current per channel: 70 mA

Quality and Safety Features

Compliant with RoHS3 directive

Surface mount package (14-TSSOP)

Operating temperature range: -40°C to 125°C

Compatibility

Suitable for a wide range of instrumentation, measurement, control, and data acquisition applications

Application Areas

Instrumentation and measurement systems

Process control and industrial automation

Data acquisition and signal conditioning

Medical equipment

Test and measurement equipment

Product Lifecycle

Currently in production

Replacement or upgrade options available from Analog Devices

Several Key Reasons to Choose This Product

Excellent performance in high-impedance, low-power applications

Versatile for a wide range of analog circuit designs

Robust CMOS design for high reliability and stability

Comprehensive technical specifications and compatibility

Ongoing product support and availability of replacement or upgrade options

Frequently Asked Questions(FAQ)

How does the AD8609ARUZ compare to other CMOS quad amplifiers in terms of power consumption and input bias current when used in precision sensor interface applications?
The AD8609ARUZ consumes 40 µA per channel, which is significantly lower than many bipolar op-amps but comparable to other rail-to-rail CMOS designs. Its input bias current of 0.2 pA ensures minimal loading on high-impedance sensors, making it suitable for low-power precision applications where long-term drift must be minimized.
What are the implications of the AD8609ARUZ's gain bandwidth product of 400 kHz when amplifying signals from a thermocouple with a slow response time?
While 400 kHz is sufficient for most thermocouple conditioning circuits due to their inherent thermal inertia, it limits high-frequency noise rejection. In such applications, external filtering may be required to suppress electromagnetic interference without degrading signal fidelity beyond acceptable levels.
Can the AD8609ARUZ reliably drive capacitive loads greater than 10 nF without stability issues in a unity-gain buffer configuration?
No. The AD8609ARUZ has limited phase margin under heavy capacitive loading. With a slew rate of only 0.1 V/µs, driving loads above 10 nF can cause ringing or oscillation. A series resistor (typically 2–10 Ω) at the output is recommended to ensure stability.
How does the voltage offset of 12 µV in the AD8609ARUZ affect measurement accuracy in a 5 mV full-scale bridge sensor application?
A 12 µV input offset translates to approximately 0.24% error in a 5 mV signal path. This is generally acceptable for moderate-precision systems but may require trimming or calibration in high-accuracy environments unless compensated by software algorithms.
Is it feasible to operate the AD8609ARUZ across the full supply range of 1.8 V to 5 V while maintaining output swing close to rails in a battery-powered IoT node?
Yes, but with trade-offs. At 1.8 V supply, the output swing may not reach true rail-to-rail levels due to internal architecture constraints. Users should verify actual output headroom in their specific layout and load conditions to avoid clipping.
How does the AD8609ARUZ perform compared to the LMV324 in a low-voltage, single-supply photodiode transimpedance amplifier design?
The AD8609ARUZ offers superior DC precision—lower input bias current (0.2 pA vs. typically >1 nA) and lower offset voltage—making it more suitable for weak photocurrent detection. However, the LMV324 provides higher output drive and wider availability in standard packages, offering a balance between cost and performance.
What considerations apply when cascading multiple stages using the AD8609ARUZ in a multi-channel data acquisition system?
Each channel operates independently with minimal crosstalk, allowing parallel processing. However, shared supply routing and ground planes must be carefully managed to prevent coupling noise between channels, especially given the modest gain bandwidth product limiting high-speed operation.
Does the AD8609ARUZ support shutdown modes, and if not, how does this impact power management in portable medical devices?
The AD8609ARUZ lacks a dedicated shutdown pin; power-down must be achieved by disabling the supply voltage. In battery-sensitive applications, this means leakage currents through ESD protection diodes become relevant, so careful PCB layout and decoupling are essential during off periods.
How does the operating temperature range of -40°C to 125°C affect input offset drift over time in industrial automation feedback loops?
Within this range, the device maintains stable performance, but users should account for typical offset drift specifications over temperature. The 12 µV initial offset may shift by tens of microvolts under extreme temperatures, requiring periodic recalibration in closed-loop control systems.
What layout precautions are necessary when placing the AD8609ARUZ in a compact 14-TSSOP package within a dense PCB design?
Due to its small footprint, thermal vias near the exposed pad help dissipate heat, though power dissipation is low. Minimize trace lengths to inputs to reduce parasitic capacitance and noise pickup, and place bypass capacitors as close as possible to V+ and GND pins to maintain stability.
Can the AD8609ARUZ replace a dual op-amp in a differential amplifier configuration while saving board space?
Yes, by using two of its four available channels. This approach conserves area and component count, provided that isolation between channels is maintained via proper grounding and routing—especially important given the modest CMRR typical of CMOS amplifiers at higher frequencies.
Why might someone choose the tube packaging option for the AD8609ARUZ instead of tape-and-reel in prototyping?
Tube packaging simplifies manual handling during early-stage development, reduces risk of ESD damage during sorting, and avoids the need for specialized equipment. It’s ideal for small-batch builds where automated assembly isn’t justified.
How does the Moisture Sensitivity Level (MSL) rating of 1 for the AD8609ARUZ influence storage and handling procedures before soldering?
MSL 1 indicates unlimited floor life under proper conditions—no baking required prior to use. However, standard anti-static protocols still apply during handling to prevent latent damage from electrostatic discharge.
What is the significance of the HTSUS code 8542.33.0001 for the AD8609ARUZ in international procurement?
This Harmonized Tariff Schedule code classifies the part as an integrated circuit amplifier, affecting import duties and customs clearance timelines. Procurement teams should reference it when sourcing globally to anticipate compliance and logistics requirements.
How does the AD8609ARUZ’s RoHS3 compliance impact regulatory documentation compared to earlier RoHS versions?
RoHS3 expands coverage to include additional restricted substances like phthalates, necessitating updated material declarations from suppliers. For the AD8609ARUZ, this means full traceability and certification are now expected for end-of-life environmental reporting.
