HomeProductsIntegrated Circuits (ICs)Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsINA157U

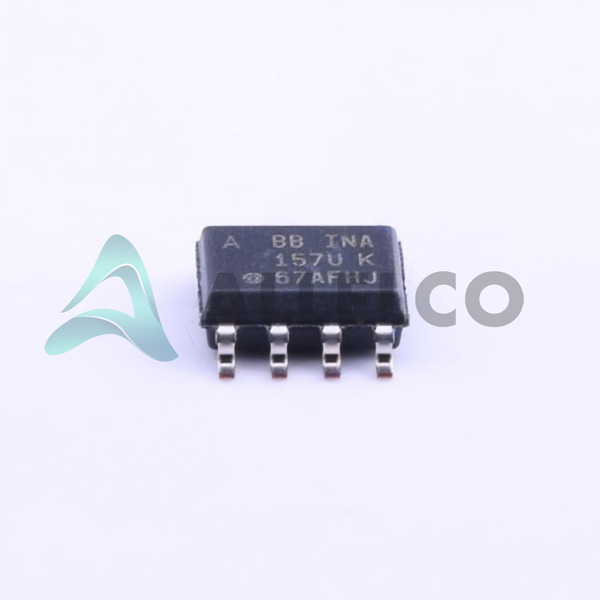

INA157U Image
INA157U Image - 1INA157U Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

INA157U - Texas Instruments

Manufacturer Part Number
INA157U
Manufacturer
Texas Instruments
Allelco Part Number
32D-INA157U
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
21,031 pcs available, New & Original
Parts Description
IC OPAMP DIFF 1 CIRCUIT 8SOIC
Package
8-SOIC
Data sheet
INA157U.pdf

PCN Design/Specification

Design 25/Feb/2022.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 21031
  • Unit Price: $2.883
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $2.883 $2.88
10+ $2.495 $24.95
30+ $2.22 $66.60
75+ $1.986 $148.95
525+ $1.878 $985.95
1500+ $1.829 $2,743.50
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

INA157U Tech Specifications
Texas Instruments - INA157U technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - INA157U

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply Span (Min) 8 V
Voltage - Supply Span (Max) 36 V
Voltage - Input Offset 100 µV
Supplier Device Package 8-SOIC
Slew Rate 14V/µs
Series -
Package / Case 8-SOIC (0.154", 3.90mm Width)
Package Tube
Product Attribute Attribute Value
Output Type -
Operating Temperature -40°C ~ 85°C
Number of Circuits 1
Mounting Type Surface Mount
Current - Supply 2.4mA
Current - Output / Channel 60 mA
Base Product Number INA157
Amplifier Type Differential
-3db Bandwidth 4 MHz

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
