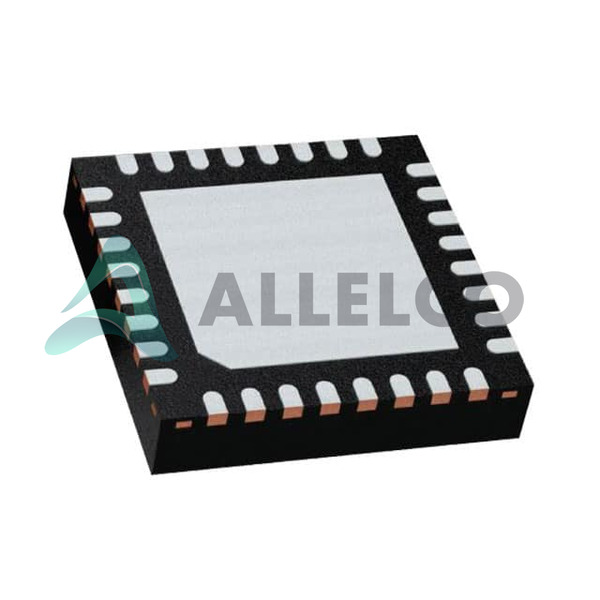

DP83826ERHBR Image
DP83826ERHBR Image - 1DP83826ERHBR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

DP83826ERHBR - Texas Instruments

Manufacturer Part Number
DP83826ERHBR
Manufacturer
Texas Instruments
Allelco Part Number
32D-DP83826ERHBR
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
23,090 pcs available, New & Original
Parts Description
LOW COST ENET PHY INDUSTRIAL
Package
32-VQFN (5x5)
Data sheet
DP83826ERHBR.pdf

HTML Datasheet

DP83826ERHBR.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 23090
  • Unit Price: $2.089
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $2.089 $2.09
10+ $1.821 $18.21
30+ $1.661 $49.83
100+ $1.501 $150.10
500+ $1.427 $713.50
1000+ $1.394 $1,394.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

DP83826ERHBR Tech Specifications
Texas Instruments - DP83826ERHBR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DP83826ERHBR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 1.62V ~ 1.98V, 3V ~ 3.6V
Supplier Device Package 32-VQFN (5x5)
Standards 10/100 Base-T/TX PHY
Series -
Protocol Ethernet
Package / Case 32-VFQFN Exposed Pad
Product Attribute Attribute Value
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 105°C (TA)
Interface MII, RMII
Function Controller
Current - Supply 55mA
Base Product Number DP83826

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

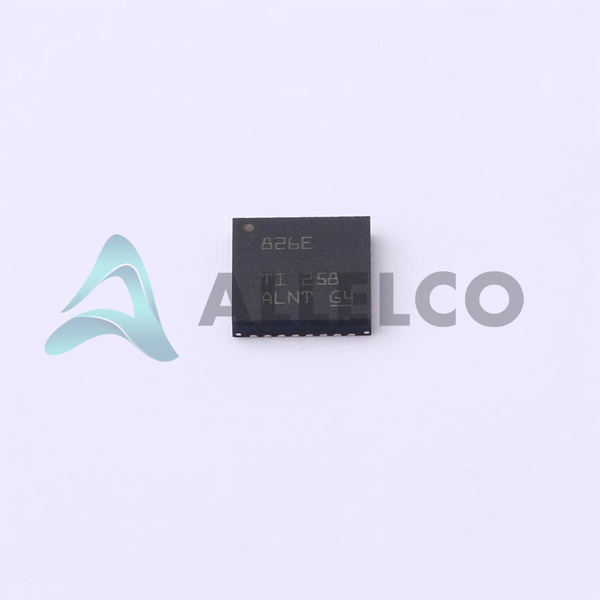

DP83826ERHBR Image
DP83826ERHBR (1)

Manufacturer Part Number

DP83826ERHBR

Manufacturer

Texas Instruments

Introduction

The DP83826ERHBR is a high-performance Ethernet physical layer transceiver (PHY) designed for 10/100 Mbps Ethernet applications.

Product Features and Performance

Supports 10BASE-T and 100BASE-TX Ethernet standards

Integrated auto-negotiation, MDI/MDI-X crossover, and polarity correction

Supports Energy Efficient Ethernet (EEE) for power reduction

Low power consumption

Flexible interface options including MII and RMII

Product Advantages

Excellent signal integrity for reliable data transmission

Robust auto-negotiation and MDI/MDI-X crossover detection

Reduced system power consumption with EEE support

Flexible interface options for easy system integration

DP83826ERHBR Image
DP83826ERHBR (2)

Key Technical Parameters

Operating voltage: 1.62V to 1.98V, 3V to 3.6V

Supply current: 55mA

Operating temperature: -40°C to 105°C

Package: 32-VQFN (5x5) with exposed pad

Quality and Safety Features

RoHS3 compliant

Reliable operation within the specified temperature range

Compatibility

The DP83826ERHBR is designed to be compatible with standard 10/100 Ethernet systems and networks.

Application Areas

Embedded systems

Industrial automation

Networking equipment

Telecommunications infrastructure

Product Lifecycle

The DP83826ERHBR is an active product from Texas Instruments. Replacement options and upgrade paths may be available.

Key Reasons to Choose This Product

Reliable Ethernet connectivity with excellent signal integrity

Low power consumption with EEE support

Flexible interface options for easy system integration

Robust auto-negotiation and MDI/MDI-X crossover detection

Wide operating temperature range for industrial applications

RoHS3 compliance for use in various applications

Frequently Asked Questions(FAQ)

What are the key voltage supply requirements for the DP83826ERHBR Ethernet PHY, and how do they affect system-level power design considerations?
The DP83826ERHBR operates across two distinct voltage rails: a core voltage range of 1.62V to 1.98V and an I/O voltage range of 3V to 3.6V. This dual-supply architecture enables flexible integration with both low-voltage digital logic and legacy 3.3V peripheral interfaces. Designers must ensure clean power delivery to avoid noise coupling into high-speed differential pairs on the MDI interface. The 55mA typical current draw suggests careful attention to transient response and decoupling, especially during link-up sequences when the transceiver enters high-power mode.
How does the DP83826ERHBR compare to similar 10/100 Ethernet PHYs in terms of interface flexibility and pin utilization for space-constrained applications?
Compared to alternatives like the DP83848J or LAN8742A, the DP83826ERHBR offers dual interface support through both MII and RMII configurations within its compact 32-VQFN (5x5) package. While some competitors require external oscillators or more complex clocking schemes, the DP83826 integrates an internal oscillator, reducing BOM count. However, it lacks Gigabit Ethernet support found in newer devices, making it suitable only for legacy 100BASE-TX designs where cost and footprint are prioritized over future-proofing.
What temperature-related limitations should engineers consider when deploying the DP83826ERHBR in industrial automation environments?
Operating reliably from -40°C to +105°C ensures robust performance in harsh environments, but thermal derating may be necessary near the upper limit due to increased leakage currents and reduced signal integrity margins at elevated temperatures. PCB layout must maintain adequate copper pour around the exposed pad for effective heat dissipation. Engineers should verify eye diagram compliance under worst-case thermal conditions using IBIS models rather than relying solely on datasheet guarantees.
Can the DP83826ERHBR be used with non-standard cable types or extended distances beyond 100 meters, and what are the performance implications?
No, the DP83826ERHBR strictly adheres to IEEE 802.3u specifications for 100BASE-TX, which limits valid transmission to standard Cat5e cabling within 100 meters. Deviations introduce impedance mismatches, crosstalk, and attenuation that degrade far-end crosstalk (FEXT) and return loss parameters below receiver thresholds. Attempting longer runs or lower-grade cables will result in intermittent link failures or CRC errors even if the physical layer reports a connected state.
What clocking options are available for the DP83826ERHBR, and how do they impact synchronization with microcontrollers?
The device supports either an integrated 25MHz crystal or an external reference clock input. Using the onboard oscillator minimizes component count but requires precise tuning; alternatively, sourcing a stable 25MHz clock from the MCU simplifies timing budgets. In RMII mode, only a 50MHz reference is needed—half the frequency of MII—reducing clock tree complexity. Care must be taken to match clock rise/fall times to meet jitter specifications (<150ps peak-to-peak).
Is there any difference in power consumption between active transmit and receive modes for the DP83826ERHBR, and how can this be measured accurately?
Yes, significant current variation occurs between modes. During full-duplex transmission, the analog front end draws up to 55mA due to amplifier biasing and DAC activity. Idle listening consumes less than half this value. To measure accurately, use a calibrated DC current probe with proper grounding to avoid ground loops that distort readings. Also account for PHY initialization surges during link training, which can spike momentarily above steady-state levels.
How does the Moisture Sensitivity Level (MSL) rating of MSL 1 for the DP83826ERHBR influence manufacturing handling procedures?
With an MSL 1 classification (unlimited floor life), the DP83826ERHBR poses minimal risk of moisture-induced defects during assembly. However, standard IPC guidelines still recommend storing components in dry cabinets and baking only if required by process control records. Since lead-free soldering typically occurs above 217°C, rapid thermal excursions won’t trigger delamination unless pre-bake protocols were violated. This simplifies logistics for high-volume production lines.
