HomeProductsIntegrated Circuits (ICs)Interface - Analog Switches, Multiplexers, DemultiplexersTMUX1113RSVR

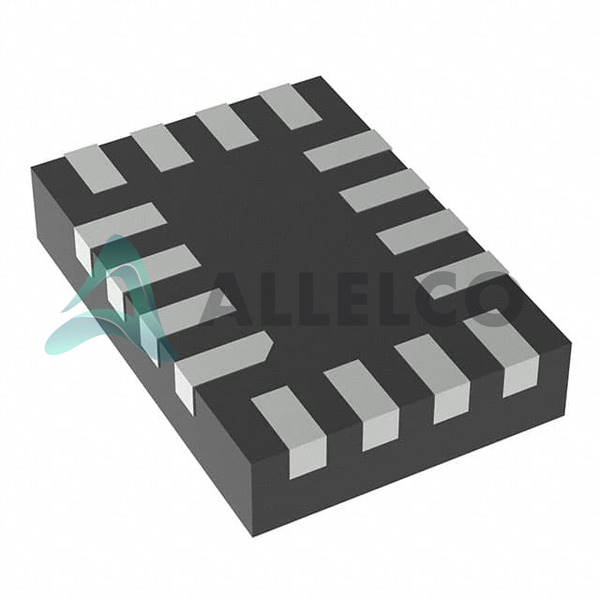

TMUX1113RSVR Image
TMUX1113RSVR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TMUX1113RSVR - Texas Instruments

Manufacturer Part Number
TMUX1113RSVR
Manufacturer
Texas Instruments
Allelco Part Number
98D-TMUX1113RSVR
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
22,400 pcs available, New & Original
Parts Description
IC SWITCH SPST X 4 4OHM 16UQFN
Package
16-UQFN (2.6x1.8)
Data sheet
TMUX1113RSVR.pdf

HTML Datasheet

TMUX111x Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 22400
  • Unit Price: $2.465
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $2.465 $2.47
10+ $2.406 $24.06
30+ $2.368 $71.04
100+ $2.328 $232.80
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

TMUX1113RSVR Tech Specifications
Texas Instruments - TMUX1113RSVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TMUX1113RSVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Single (V+) 1.08V ~ 5.5V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) -
Switch Circuit SPST
Supplier Device Package 16-UQFN (2.6x1.8)
Series -
Package / Case 16-UFQFN
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 125°C (TA)
On-State Resistance (Max) 4Ohm
Product Attribute Attribute Value
Number of Circuits 4
Multiplexer/Demultiplexer Circuit 1:1
Mounting Type Surface Mount
Current - Leakage (IS(off)) (Max) 80pA
Crosstalk -90dB @ 10MHz
Charge Injection -1.5pC
Channel-to-Channel Matching (ΔRon) 130mOhm
Channel Capacitance (CS(off), CD(off)) 7pF, 10pF
Base Product Number TMUX1113
-3db Bandwidth 300MHz

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Frequently Asked Questions(FAQ)

What are the key electrical characteristics of the TMUX1113RSVR that make it suitable for precision analog signal routing in low-voltage systems?
The TMUX1113RSVR features an on-state resistance (RON) of 4Ω with a channel-to-channel matching accuracy of 130mΩ, which minimizes gain variation across switched channels. Operating over a supply voltage range of 1.08V to 5.5V enables compatibility with modern low-power digital and mixed-signal systems. With leakage current as low as 80pA and crosstalk below –90dB at 10MHz, this device maintains signal integrity in sensitive measurement applications such as sensor conditioning or battery-powered instrumentation.
How does the TMUX1113RSVR compare to similar multiplexer ICs like the TMUX1574 or ADG732 when selecting between 4-channel SPST switches for high-speed data acquisition?
Unlike the TMUX1574, which supports higher bandwidth (>1GHz) but has larger RON mismatch (~300mΩ), the TMUX1113RSVR offers tighter Ron matching (130mΩ) ideal for balanced differential paths. Compared to the ADG732, which operates only up to 2.5V and lacks full rail-to-rail capability, the TMUX1113RSVR extends operation down to 1.08V and provides better low-voltage performance. This makes the TMUX1113RSVR preferable where tight impedance control and sub-3V operation are required.
Can the TMUX1113RSVR be safely used in industrial temperature environments without derating concerns?
Yes, the TMUX1113RSVR is rated for operation from –40°C to +125°C, covering most industrial, automotive, and aerospace applications without requiring thermal derating of its electrical parameters. Its packaging—16-UQFN (2.6x1.8)—provides reliable solder joint performance across this range, and MSL 1 classification ensures robust handling during assembly even in high-volume manufacturing.
What impact does the 4Ω on-resistance have on signal attenuation when switching high-impedance sources through the TMUX1113RSVR?
For typical high-impedance sources (e.g., 10kΩ), loading effects due to the TMUX1113RSVR’s 4Ω RON are negligible (<0.04% attenuation). However, in low-level signals such as those from piezoelectric sensors or photodiodes, even small parasitic capacitances (CD(off) = 10pF) can cause charge injection (±1.5pC) and transient distortion. Careful layout and guard shielding should be implemented to preserve signal fidelity.
Is the TMUX1113RSVR suitable for switching bidirectional analog signals without polarity inversion?
Yes, the TMUX1113RSVR supports bidirectional signal flow because its internal architecture allows current to pass in either direction across each SPST channel. This eliminates the need for external diodes or protection circuitry, simplifying design for applications like I²C bus expansion or bidirectional level shifting in mixed-voltage systems.
How does the bandwidth specification of 300MHz influence the choice of the TMUX1113RSVR for video or RF signal routing?
While the TMUX1113RSVR is not intended for baseband RF switching above several hundred MHz, its 300MHz bandwidth supports uncompressed video signals such as VGA or composite video at standard resolutions. Combined with low crosstalk (–90dB @ 10MHz) and minimal capacitance (7–10pF), it ensures acceptable edge preservation in video path selection, though higher-performance multiplexers would be preferred for HD or broadcast-quality signals.
What considerations apply when cascading multiple TMUX1113RSVR devices to increase channel count?
When cascading, cumulative RON increases additively, potentially doubling effective resistance in series paths. Additionally, charge injection from one stage can couple into adjacent stages, especially under rapid switching conditions. Proper decoupling and minimizing trace inductance between stages are recommended. Also, ensure total supply current remains within budget, as each channel contributes to quiescent consumption.
Does the TMUX1113RSVR require external pull-up/pull-down resistors for control inputs, and how does this affect system power consumption?
No external pull-ups are needed because the TMUX1113RSVR features CMOS-compatible digital inputs with Schmitt-trigger thresholds, ensuring clean logic transitions even with slow control signals. Since input leakage is extremely low (typically <1nA), static power draw from control lines is negligible, supporting energy-efficient designs in portable equipment.
How does the Moisture Sensitivity Level (MSL) 1 rating of the TMUX1113RSVR benefit high-volume PCB assembly processes?
MSL 1 indicates unlimited floor life at 30°C/60% RH, allowing manufacturers to handle tape-and-reel packaged TMUX1113RSVR units indefinitely before reflow soldering without baking. This reduces logistical complexity and cost in mass production, particularly beneficial for contract electronics manufacturers targeting just-in-time delivery.
What role does the UQFN package play in space-constrained embedded designs using the TMUX1113RSVR?
The compact 16-pin UQFN package measures just 2.6mm × 1.8mm with exposed pad for thermal and electrical connection, enabling dense PCB layouts. Its thin profile (typically 0.8mm) suits handheld devices and wearable electronics where board area is limited. The exposed pad also enhances heat dissipation compared to standard QFN, though power dissipation remains modest due to low channel currents.
Can the TMUX1113RSVR be used interchangeably with other members of the TMUX1113 series in existing schematics?
Interchangeability depends on pinout and electrical specs. While the base product number TMUX1113 covers variants like TMUX1113RSVT, differences in packaging, lead counts, or minor parameter tolerances may exist. Always verify absolute maximum ratings and interface compatibility—especially supply voltage range and control logic levels—before substituting.
What precautions should be taken to avoid latch-up when integrating the TMUX1113RSVR near noisy digital circuits?
Although CMOS latch-up is rare in modern silicon processes, maintaining VCC within specified limits (1.08V to 5.5V) and avoiding voltage overshoots on any pin prevents triggering parasitic SCR structures. Place bypass capacitors (e.g., 100nF) close to the TMUX1113RSVR’s power pins and route analog signals away from high-speed digital traces to reduce coupling.
How does the charge injection value of –1.5pC affect sampling systems using the TMUX1113RSVR as a front-end switch?
In switched-capacitor circuits such as sample-and-hold amplifiers, –1.5pC of charge injection introduces a voltage error ΔV = Q/C. For example, injecting into a 1nF hold capacitor yields –1.5mV error—significant in high-gain or precision ADC frontends. Mitigation strategies include using complementary switch pairs or post-switch settling delays to allow charge redistribution.
Is the TMUX1113RSVR compatible with automated optical inspection (AOI) and x-ray verification during PCB manufacturing?
Yes, the UQFN package exhibits good visibility under AOI and X-ray due to its contrasting materials and pad geometry. The absence of lead framing and uniform solder fillets facilitate defect detection, supporting high-yield production. However, proper stencil aperture design is still necessary to ensure consistent solder paste deposition.
What advantages does ROHS3 compliance offer when sourcing the TMUX1113RSVR for global market deployment?
ROHS3 compliance guarantees exclusion of hazardous substances like lead, mercury, cadmium, and specific phthalates, meeting EU, China, and international environmental regulations. This simplifies supply chain documentation and avoids customs delays or retesting costs associated with non-compliant components during global distribution.

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TMUX1113RSVR

Product Attribute TMUX1112RSVR TMUX1108RSVR TMUX1109RSVR TMUX1113PWR
Part Number TMUX1112RSVR TMUX1108RSVR TMUX1109RSVR TMUX1113PWR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Series - - - -
Channel Capacitance (CS(off), CD(off)) - - - -
Charge Injection - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
On-State Resistance (Max) - - - -
Current - Leakage (IS(off)) (Max) - - - -
Voltage - Supply, Single (V+) - - - -
Multiplexer/Demultiplexer Circuit - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Base Product Number - DAC34H84 MAX500 ADS62P42
Switch Circuit - - - -
Voltage - Supply, Dual (V±) - - - -
Crosstalk - - - -
Channel-to-Channel Matching (ΔRon) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
-3db Bandwidth - - - -
Switch Time (Ton, Toff) (Max) - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Number of Circuits - - - -

TMUX1113RSVR Datasheet PDF

Download TMUX1113RSVR pdf datasheets and Texas Instruments documentation for TMUX1113RSVR - Texas Instruments.

HTML Datasheet
TMUX111x Datasheet.pdf
