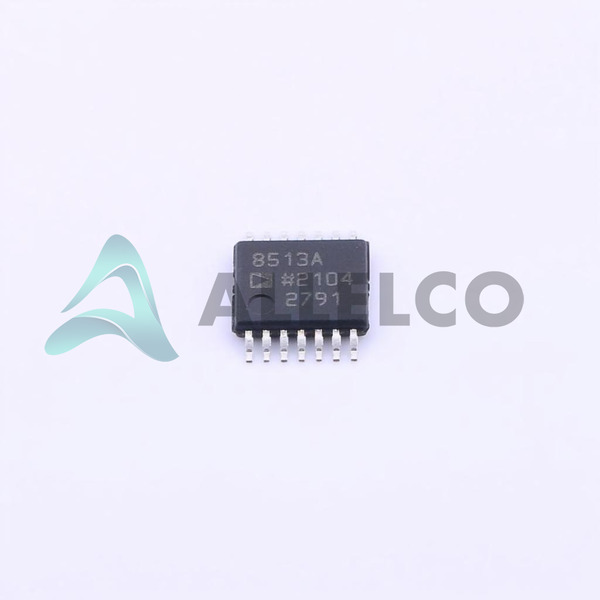

AD8513ARUZ-REEL Image
AD8513ARUZ-REEL Image - 1AD8513ARUZ-REEL Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

AD8513ARUZ-REEL - Analog Devices Inc.

Manufacturer Part Number
AD8513ARUZ-REEL
Manufacturer
Analog Devices, Inc.
Allelco Part Number
32D-AD8513ARUZ-REEL
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
6,030 pcs available, New & Original
Parts Description
IC OPAMP JFET 4 CIRCUIT 14TSSOP
Package
14-TSSOP
Data sheet
AD8513ARUZ-REEL.pdf

Datasheets

AD8510,12,13.pdf

Other Related Documents

Tape and Reel Packaging.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 6030
  • Unit Price: $11.242
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $11.242 $11.24
10+ $10.898 $108.98
12+ $9.661 $115.93
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

AD8513ARUZ-REEL Tech Specifications
Analog Devices Inc. - AD8513ARUZ-REEL technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. - AD8513ARUZ-REEL

Product Attribute Attribute Value
Manufacturer Analog Devices, Inc.
Voltage - Supply Span (Min) 10 V
Voltage - Supply Span (Max) 30 V
Voltage - Input Offset 100 µV
Supplier Device Package 14-TSSOP
Slew Rate 20V/µs
Series -
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Package Tape & Reel (TR)
Output Type -
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C
Number of Circuits 4
Mounting Type Surface Mount
Gain Bandwidth Product 8 MHz
Current - Supply 2.2mA (x4 Channels)
Current - Output / Channel 70 mA
Current - Input Bias 25 pA
Base Product Number AD8513
Amplifier Type J-FET

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

AD8513ARUZ-REEL Image
AD8513ARUZ-REEL (1)

Manufacturer Part Number

AD8513ARUZ-REEL

Manufacturer

Analog Devices, Inc.

Introduction

Low-noise, high-speed quad op-amp in a small TSSOP package

Product Features and Performance

4 independent op-amps in a single package

High performance: 8 MHz gain-bandwidth, 20 V/μs slew rate, 100 μV input offset voltage

Low power: 2.2 mA per channel supply current

Low input bias current: 25 pA

Wide supply voltage range: 10 V to 30 V

Rail-to-rail input and output capabilities

Stable with capacitive loads

Product Advantages

Space-saving quad op-amp solution

Excellent AC and DC performance

Low power consumption

Versatile for various instrumentation and control applications

AD8513ARUZ-REEL Image
AD8513ARUZ-REEL (2)

Key Technical Parameters

4 independent op-amps

Gain-bandwidth product: 8 MHz

Supply voltage range: 10 V to 30 V

Supply current per channel: 2.2 mA

Input offset voltage: 100 μV

Input bias current: 25 pA

Slew rate: 20 V/μs

Output current per channel: 70 mA

Quality and Safety Features

RoHS3 compliant

14-TSSOP package for surface mount

Operating temperature range: -40°C to 125°C

Compatibility

Suitable for a wide range of instrumentation, control, and amplification applications

Application Areas

Sensor signal conditioning

Active filters

Precision voltage references

Summing amplifiers

Differential line drivers

Comparators

Product Lifecycle

Current product offering, no indication of discontinuation

Several Key Reasons to Choose This Product

Excellent performance in a small, space-saving quad op-amp package

Low power consumption and low input bias current for efficient designs

Wide supply voltage range and rail-to-rail input/output capabilities for versatility

Stable operation with capacitive loads for reliable performance

RoHS3 compliance and wide operating temperature range for industrial and medical applications

Frequently Asked Questions(FAQ)

How does the AD8513ARUZ-REEL's input bias current compare to bipolar input amplifiers in low-power precision applications, and what implications does this have for long-term stability in high-impedance sensor interfaces?
The AD8513ARUZ-REEL exhibits an input bias current of 25 pA, which is significantly lower than typical bipolar input amplifiers that often exceed 1 nA. This characteristic reduces leakage effects in high-impedance circuits, minimizing offset voltage drift over time and improving accuracy in applications such as pH probes or thermocouple conditioning where source impedances can exceed 10 MΩ. In comparison, a bipolar amplifier with 1 nA bias current across a 10 MΩ source would introduce a 10 mV error—substantial in precision systems. The JFET input structure enables this performance while maintaining a 2.2 mA total supply current per channel, making it suitable for battery-powered instruments requiring both low noise and minimal loading.
What design considerations arise when using multiple channels of the AD8513ARUZ-REEL in close proximity on a PCB, particularly regarding power supply decoupling and crosstalk between adjacent amplifier stages?
When deploying four independent channels of the AD8513ARUZ-REEL in dense layouts, careful attention must be paid to power integrity due to each channel drawing up to 70 mA peak output current and 2.2 mA quiescent current. A common practice is to use individual 100 nF ceramic capacitors placed within 5 mm of the package pins for high-frequency decoupling, supplemented by a bulk 10 µF tantalum near the supply entry point. Adjacent channels share the same supply rail but are electrically isolated; however, capacitive coupling through shared ground planes can induce crosstalk at frequencies above 1 MHz. Separating analog ground returns with guard traces or using a star grounding scheme helps mitigate this. The 8 MHz gain bandwidth also means that high-gain configurations (>40 dB) may exhibit inter-channel interaction if layout symmetry is compromised.
How does the AD8513ARUZ-REEL’s slew rate of 20 V/µs influence its suitability for driving capacitive loads in feedback loops, especially compared to rail-to-rail op-amps with similar GBW?
With a slew rate of 20 V/µs, the AD8513ARUZ-REEL can handle moderate capacitive loading without significant transient distortion, but it is not ideal for large capacitive loads (e.g., >100 pF) in unity-gain configurations. Unlike rail-to-rail output amplifiers optimized for wide dynamic range, this device has no specified output swing limitations, but its internal compensation limits stability under heavy capacitive loads unless compensated externally. For example, a 100 pF load could require a series resistor of 10–50 Ω at the output to prevent oscillation, whereas a comparable rail-to-rail op-amp might integrate such damping networks internally. Compared to a general-purpose op-amp with 10 V/µs slew rate, the AD8513 offers better speed for signal conditioning in data acquisition systems where bandwidth exceeds 100 kHz but output swing requirements are modest.
In what scenarios would the AD8513ARUZ-REEL be preferred over the AD8512ARUZ-REEL despite having identical electrical characteristics, considering only package and availability differences?
Although both the AD8513ARUZ-REEL and AD8512ARUZ-REEL share the same electrical specifications, the AD8513 contains four JFET input amplifiers in a 14-TSSOP package, while the AD8512 typically integrates two such channels in an 8-pin SOIC. The choice depends on system integration density: the AD8513ARUZ-REEL allows more compact designs when multiple precision channels are needed without sacrificing input bias performance. Additionally, inventory strategies may favor the reel format of the AD8513ARUZ-REEL for automated assembly lines requiring continuous feeding from Digi-Reel® spools. However, if only two channels are required, the AD8512ARUZ-REEL may reduce pin count and board space further, though with higher per-unit cost for equivalent functionality.
What thermal management challenges emerge when operating the AD8513ARUZ-REEL near its maximum junction temperature of 125°C, given its 2.2 mA supply current per channel and 14-pin TSSOP packaging?
Each of the four channels of the AD8513ARUZ-REEL draws 2.2 mA from a ±15 V supply, resulting in approximately 96.8 mW total power dissipation under dual-supply conditions. In a 14-TSSOP package with θJA ≈ 120°C/W (typical for exposed pad variants), this translates to a temperature rise of ~11.6°C above ambient—manageable in still air. However, at supply voltages approaching 30 V (e.g., 28 V single supply), power increases nonlinearly due to output stage conduction, potentially exceeding 150 mW. Under such conditions, thermal resistance becomes critical; inadequate copper pour or absence of vias to inner layers can elevate die temperature beyond safe limits. For continuous operation above 85°C ambient, derating curves or heatsinking should be evaluated to maintain reliability.
How does the input offset voltage of 100 µV in the AD8513ARUZ-REEL affect gain accuracy in precision instrumentation amplifiers, and what calibration strategy would be appropriate for a 100x amplification stage?
A 100 µV input offset voltage introduces an initial error that scales linearly with closed-loop gain. In a 100x non-inverting amplifier configuration, this results in a worst-case output offset of 10 mV before any external trimming. While acceptable in many industrial sensors, this level may exceed requirements in medical or scientific instruments demanding <1 mV accuracy. External offset null pins are not provided on the AD8513ARUZ-REEL, so software-based calibration via microcontroller adjustment during initialization is necessary. One approach is to measure zero-scale output with inputs grounded, store the correction factor in EEPROM, and apply it digitally during measurement sequences. Alternatively, cascading with a chopper-stabilized preamp can reduce effective offset below 10 µV prior to the AD8513 stage.
Can the AD8513ARUZ-REEL drive TTL logic levels directly when used as a comparator, and how does its open-drain output behavior compare to dedicated comparators like the LM393?
The AD8513ARUZ-REEL is designed as a linear amplifier and lacks a true open-collector or open-drain output stage. Its output swings rail-to-rail within 1.5 V under normal conditions but cannot actively pull below ground or above the positive rail. As a comparator, it may function in some cases, but its 20 V/µs slew rate ensures fast transitions suitable for digital signaling. However, unlike the LM393, which provides a guaranteed sink current of 16 mA into 0.4 V at VCC = 5 V, the AD8513ARUZ-REEL’s output transistor has limited sourcing/sinking capability (~70 mA absolute max). Therefore, interfacing directly to TTL inputs is feasible only if fan-out and transition times align with CMOS/TTL thresholds, though dedicated comparator ICs remain more reliable for logic-level conversion.
What precautions should be taken when substituting the AD8513ARUZ-REEL in legacy designs originally using the AD8510, considering differences in number of channels and package compatibility?
The AD8510 comes in a single-channel 8-pin SOIC package with otherwise similar JFET input characteristics, including 25 pA bias current and 8 MHz bandwidth. Replacing it with the quad-channel AD8513ARUZ-REEL requires verifying physical footprint compatibility—the 14-TSSOP (4.4 mm width) does not fit standard 8-pin SOIC sockets. Functionally, adding extra channels increases quiescent current from 2.2 mA to 8.8 mA, potentially affecting battery life in portable equipment. Additionally, unused inputs on the AD8513 must be tied to virtual ground or powered rails to avoid latch-up or increased noise pickup. If only one channel is needed, retaining the AD8510 minimizes component count and power consumption unless future expansion justifies migration to the multi-channel variant.
